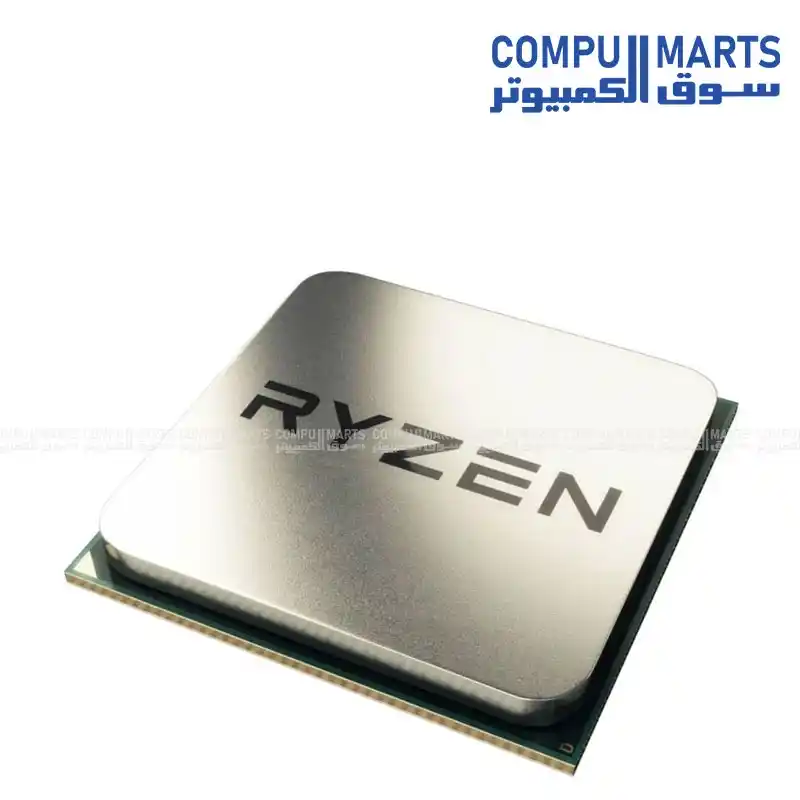

RYZEN5 7400 MPK

عن المنتج

/* ===== Compumarts Dark Specs ===== */ .dark-spec-wrapper { width: 100%; margin: 30px 0; font-family: inherit; } .dark-spec-table { width: 100%; border-collapse: collapse; background: #1f1f1f; border-radius: 12px; overflow: hidden; border: 1px solid #2f2f2f; } /* Header */ .dark-spec-table th { background: #262626; color: #cfd8ff; padding: 14px 18px; text-align: left; font-size: 14px; font-weight: 600; border-bottom: 1px solid #2f2f2f; } /* Cells */ .dark-spec-table td { padding: 14px 18px; border-bottom: 1px solid #2f2f2f; font-size: 14px; color: #d1d5db; } /* Category */ .dark-spec-table td:first-child { color: #7aa2ff; font-weight: 600; width: 32%; } /* Hover */ .dark-spec-table tr:hover { background: #252525; } .dark-spec-table tr:last-child td { border-bottom: none; } /* ===== Mobile View ===== */ @media (max-width: 768px) { .dark-spec-table thead { display: none; } .dark-spec-table { background: transparent; border: none; } .dark-spec-table tr { display: block; background: #1f1f1f; border: 1px solid #2f2f2f; border-radius: 12px; margin-bottom: 14px; padding: 14px 16px; } .dark-spec-table td { display: block; border: none; padding: 6px 0; } .dark-spec-table td:first-child { font-size: 14px; color: #7aa2ff; margin-bottom: 6px; } .dark-spec-table td:last-child { font-size: 14px; color: #e5e7eb; line-height: 1.6; } } Category Specification Details Name AMD Ryzen 5 7400 Family Ryzen Series Ryzen 7000 Series Form Factor Desktops, Boxed Processor Market Segment Enthusiast Desktop Regional Availability Global Former Codename Raphael AM5 Processor Architecture Zen 4 # of CPU Cores 6 Multithreading (SMT) Yes # of Threads 12 Max. Boost Clock Up to 4.3 GHz Base Clock 3.3 GHz L1 Cache 384 KB L2 Cache 6 MB L3 Cache 16 MB Default TDP 65W Processor Technology for CPU Cores TSMC 5nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET CPU Compute Die (CCD) Size 71mm² I/O Die (IOD) Size 122mm² Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 Thermal Solution (PIB/MPK) AMD Wraith Stealth Max. Operating Temperature (Tjmax) 95°C Launch Date 9/16/25 OS Support Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit Native USB Ports 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 (480Mbps) PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28 / 24 NVMe Support Boot, RAID0, RAID1, RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 128 GB Max Memory Speed 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 ECC Support Yes (Requires mobo support) Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C® DP Alternate Mode Yes Product ID Tray 100-000001900 Supported Technologies AMD EXPO™ Technology, AMD Ryzen™ Technologies Category Specification Details Name AMD Ryzen 5 7400 Family Ryzen Series Ryzen 7000 Series Form Factor Desktops, Boxed Processor Market Segment Enthusiast Desktop Regional Availability Global Former Codename Raphael AM5 Processor Architecture Zen 4 # of CPU Cores 6 Multithreading (SMT) Yes # of Threads 12 Max. Boost Clock Up to 4.3 GHz Base Clock 3.3 GHz L1 Cache 384 KB L2 Cache 6 MB L3 Cache 16 MB Default TDP 65W Processor Technology for CPU Cores TSMC 5nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET CPU Compute Die (CCD) Size 71mm² I/O Die (IOD) Size 122mm² Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 Thermal Solution (PIB/MPK) AMD Wraith Stealth Max. Operating Temperature (Tjmax) 95°C Launch Date 9/16/25 OS Support Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit Native USB Ports 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 (480Mbps) PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28 / 24 NVMe Support Boot, RAID0, RAID1, RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 128 GB Max Memory Speed 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 ECC Support Yes (Requires mobo support) Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C® DP Alternate Mode Yes Product ID Tray 100-000001900 Supported Technologies AMD EXPO™ Technology, AMD Ryzen™ Technologies

تفاصيل إضافية

Category Specification Details Name AMD Ryzen 5 7400 Family Ryzen Series Ryzen 7000 Series Form Factor Desktops, Boxed Processor Market Segment Enthusiast Desktop Regional Availability Global Former Codename Raphael AM5 Processor Architecture Zen 4 # of CPU Cores 6 Multithreading (SMT) Yes # of Threads 12 Max. Boost Clock Up to 4.3 GHz Base Clock 3.3 GHz L1 Cache 384 KB L2 Cache 6 MB L3 Cache 16 MB Default TDP 65W Processor Technology for CPU Cores TSMC 5nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET CPU Compute Die (CCD) Size 71mm² I/O Die (IOD) Size 122mm² Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 Thermal Solution (PIB/MPK) AMD Wraith Stealth Max. Operating Temperature (Tjmax) 95°C Launch Date 9/16/25 OS Support Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit Native USB Ports 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 (480Mbps) PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28 / 24 NVMe Support Boot, RAID0, RAID1, RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 128 GB Max Memory Speed 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 ECC Support Yes (Requires mobo support) Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C® DP Alternate Mode Yes Product ID Tray 100-000001900 Supported Technologies AMD EXPO™ Technology, AMD Ryzen™ Technologies

المواصفات الفنية

# of CPU Cores

6

# of Threads

12

AMD EXPO™ Memory Overclocking

Yes

AMD Ryzen™ Master Support

Yes

Base Clock

3.3 GHz

CPU Boost Technology

Precision Boost 2

CPU Compute Die (CCD) Size

71mm²

CPU Socket

AM5

Category

Specification Details

Curve Optimizer Voltage Offsets

Yes

Default TDP

65W

ECC Support

Yes (Requires mobo support)

Family

Ryzen

Form Factor

Desktops, Boxed Processor

Former Codename

Raphael AM5

Graphics Core Count

2

Graphics Frequency

2200 MHz

Graphics Model

AMD Radeon™ Graphics

I/O Die (IOD) Size

122mm²

Instruction Set

x86-64

L1 Cache

384 KB

L2 Cache

6 MB

L3 Cache

16 MB

Launch Date

9/16/25

Market Segment

Enthusiast Desktop

Max Memory Speed

2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600

Max. Boost Clock

Up to 4.3 GHz

Max. Memory

128 GB

Max. Operating Temperature (Tjmax)

95°C

Memory Channels

2

Multithreading (SMT)

Yes

NVMe Support

Boot, RAID0, RAID1, RAID10

Name

AMD Ryzen 5 7400

Native PCIe® Lanes (Total/Usable)

28 / 24

Native USB Ports

4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 (480Mbps)

OS Support

Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

PCI Express® Version

PCIe® 5.0

Package Die Count

2

Precision Boost Overdrive

Yes

Processor Architecture

Zen 4

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

Product ID Tray

100-000001900

Regional Availability

Global

Series

Ryzen 7000 Series

Supported Extensions

AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Supported Technologies

AMD EXPO™ Technology, AMD Ryzen™ Technologies

Supporting Chipsets

A620, X670E, X670, B650E, B650, X870E, X870, B840, B850

System Memory Type

DDR5

Thermal Solution (PIB/MPK)

AMD Wraith Stealth

USB Type-C® DP Alternate Mode

Yes

Unlocked for Overclocking

Yes
