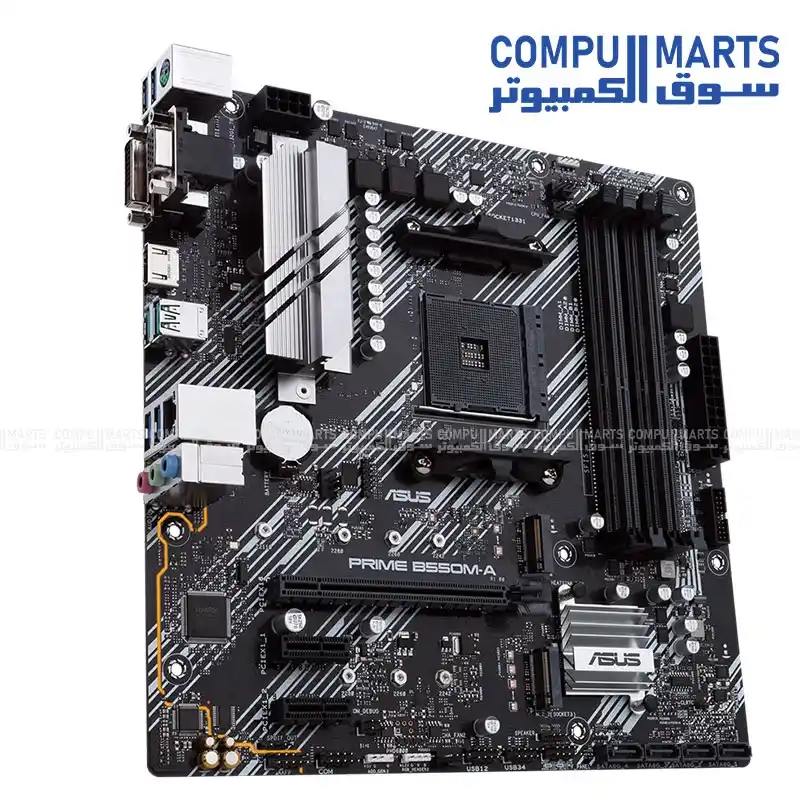

ASUS PRIME B550M-A AMD B550 Ryzen AM4 micro ATX Motherboard with Dual M.2 PCIe 4.0 1Gb Ethernet HDMI DVI-D D-Sub USB 3.2 Gen 2 Aura Sync RGB Support

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } ASUS PRIME B550M-A is a motherboard featuring AMD B550, AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors, 4 x DIMM, Max. 128GB, Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports, and 1 x PCIe 4.0 x16 (x16 mode), available to Egyptian buyers looking for ASUS PRIME B550M-A AMD B550 Ryzen AM4 motherboard through Compumarts. Key specs CHIPSET AMD B550 SOCKET AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors MEMORY 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory STORAGE Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports PORTS 1 x D-Sub, 1 x DVI-D, 1 x HDMI 2.1(4K@60HZ) FORM FACTOR mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) ASUS PRIME B550M-A is a motherboard featuring AMD B550, AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors, 4 x DIMM, Max. 128GB, Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports, and 1 x PCIe 4.0 x16 (x16 mode), available to Egyptian buyers looking for ASUS PRIME B550M-A AMD B550 Ryzen AM4 motherboard through Compumarts. Key specs CHIPSET AMD B550 SOCKET AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors MEMORY 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory STORAGE Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports PORTS 1 x D-Sub, 1 x DVI-D, 1 x HDMI 2.1(4K@60HZ) FORM FACTOR mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

تفاصيل إضافية

ASUS PRIME B550M-A is a motherboard featuring AMD B550, AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors, 4 x DIMM, Max. 128GB, Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports, and 1 x PCIe 4.0 x16 (x16 mode), available to Egyptian buyers looking for ASUS PRIME B550M-A AMD B550 Ryzen AM4 motherboard through Compumarts. Key specs CHIPSET AMD B550 SOCKET AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors MEMORY 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory STORAGE Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports PORTS 1 x D-Sub, 1 x DVI-D, 1 x HDMI 2.1(4K@60HZ) FORM FACTOR mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

المواصفات الفنية

Audio

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Back I/O

HDMI, DVI-D, D-Sub, LAN (RJ45), Audio jacks, PS/2, USB 3.2 Gen 2, USB 3.2 Gen 1

CHIPSET

AMD B550

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Category

Specification Details

Chipset

AMD B550

Expansion Slots

1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1

FORM FACTOR

mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Form Factor

mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Front USB

2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0

Graphics

1 x D-Sub, 1 x DVI-D, 1 x HDMI 2.1(4K@60HZ)

LAN

Realtek RTL8111H 1Gb Ethernet

M.2 Slot 1

Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

M.2 Slot 2

Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

MEMORY

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

Manageability

WOL by PXE

Memory

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

Memory Architecture

Dual Channel Memory Architecture

Model

PRIME B550M-A

Operating System

Windows® 10 64-bit

PORTS

1 x D-Sub, 1 x DVI-D, 1 x HDMI 2.1(4K@60HZ)

RAID

Support Raid 0, 1, 10

Rear USB

2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A

SOCKET

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

STORAGE

Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports

Software

Armoury Crate, Aura Creator, Aura Sync, AI Suite 3, TurboV EVO, EPU, Fan Xpert 2+, ASUS CPU-Z, AI Charger, DAEMON Tools, Norton Anti-virus software (Free Trial for 60 days), WinRAR

Special Features

ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, AURA Sync

Storage

Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
