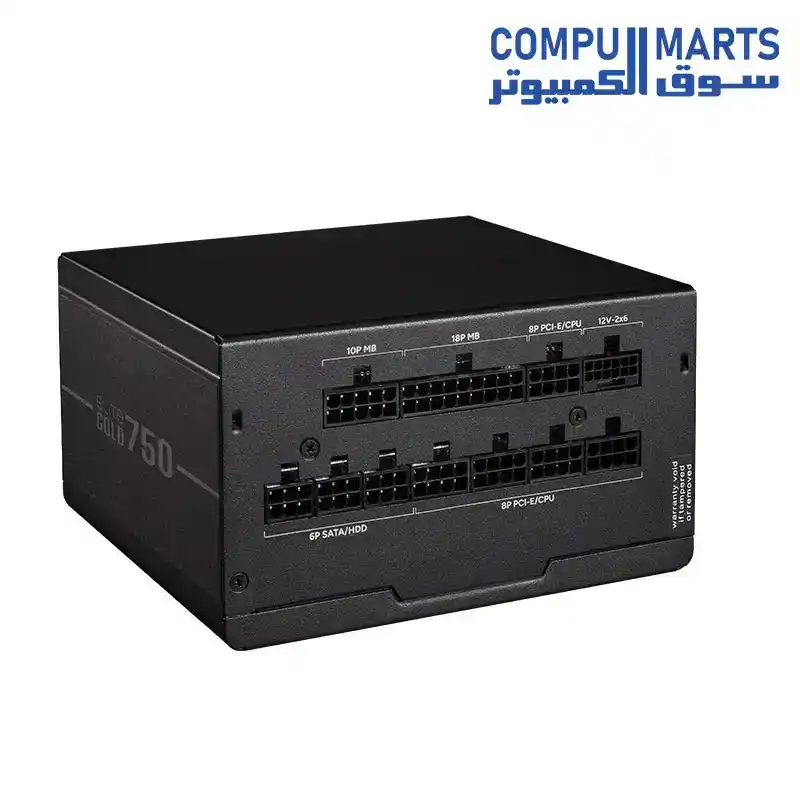

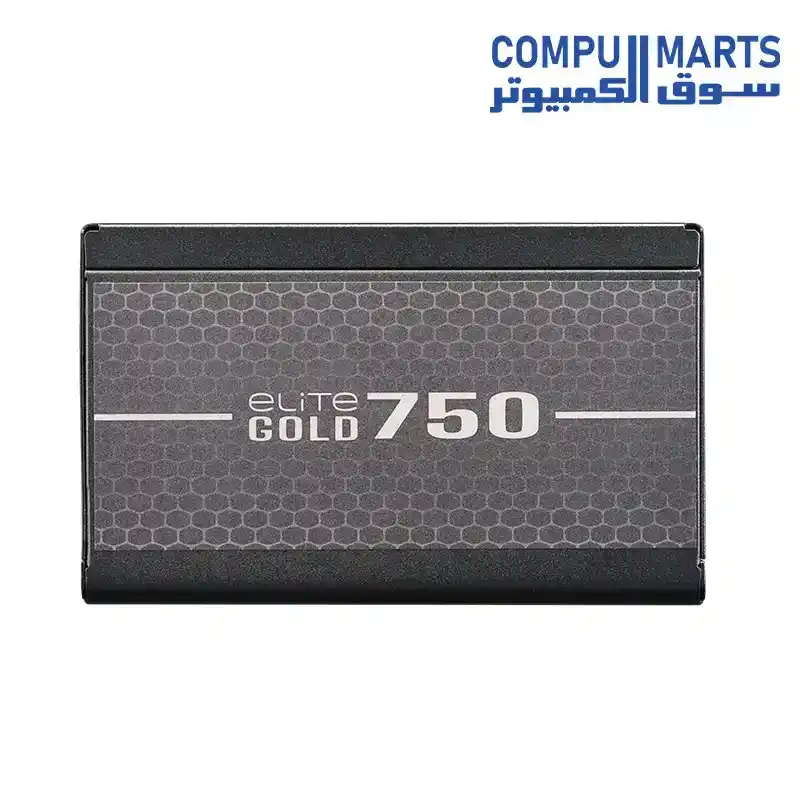

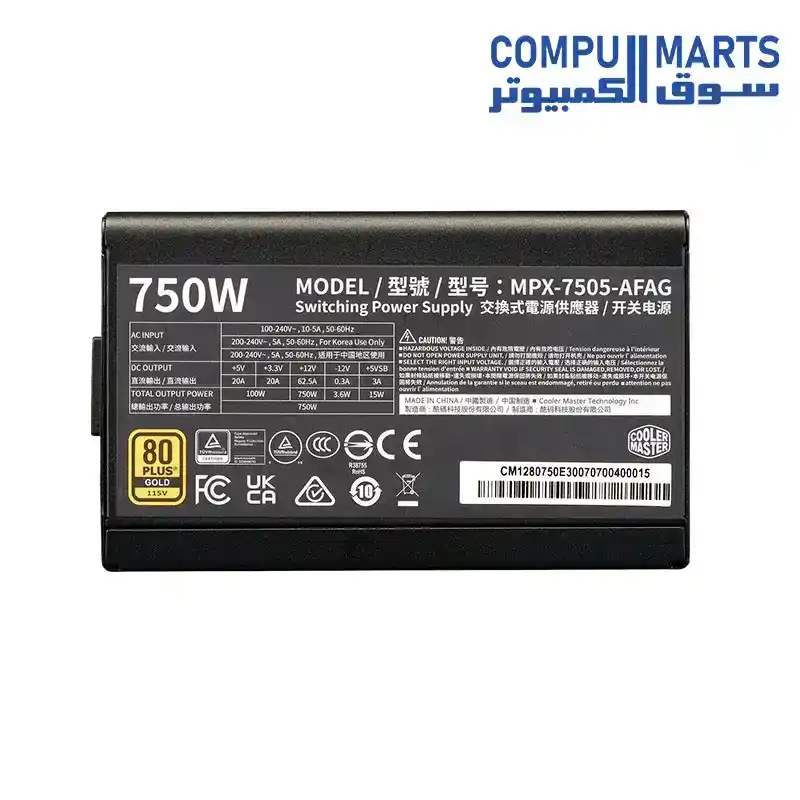

Cooler Master Elite Gold 750W ATX 3.1 Fully Modular Power Supply ELITE GOLD 750 750W

عن المنتج

.pdesc-wrap{background:#1a1a1a;border:1px solid #2a2a2a;border-radius:12px;padding:16px;font:14px/1.6 inherit} .pdesc-intro{color:#b0b6bf;margin:0 0 12px}.pdesc-intro strong{color:#6b9fff} .product-specs-table{width:100%;border-collapse:collapse}.product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:6px 8px;font-size:13px}.product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%}.product-specs-table td:last-child{color:#d1d5db} @media(max-width:480px){.product-specs-table td{display:block;width:100%;padding:4px 6px}.product-specs-table td:first-child{font-size:11px}} Cooler Master Elite Gold 750 MPX-7505-AFAG is a 750W ATX 12V Ver. 3.1 fully modular PSU with 80 PLUS Gold, Active PFC, 120mm rifle-bearing fan and UVP/OVP/OPP/OTP/SCP protections. Available at Compumarts Egypt. MODEL MPX-7505-AFAG POWER 750W ATX ATX 12V Ver. 3.1 EFFICIENCY 80 PLUS Gold, ≥90% @ Typical Load MODULAR Fully Modular INPUT 100-240V, 5 ~ 10A, 50-60Hz FAN 120mm, Rifle bearing CONNECTORS 24 Pin, EPS 4+4 / 8 Pin, SATA, PCI-e 6+2 Pin, 12+4 Pin DIMENSIONS 140 x 150 x 86 mm WARRANTY 5 Years Cooler Master Elite Gold 750 MPX-7505-AFAG is a 750W ATX 12V Ver. 3.1 fully modular PSU with 80 PLUS Gold, Active PFC, 120mm rifle-bearing fan and UVP/OVP/OPP/OTP/SCP protections. Available at Compumarts Egypt. MODEL MPX-7505-AFAG POWER 750W ATX ATX 12V Ver. 3.1 EFFICIENCY 80 PLUS Gold, ≥90% @ Typical Load MODULAR Fully Modular INPUT 100-240V, 5 ~ 10A, 50-60Hz FAN 120mm, Rifle bearing CONNECTORS 24 Pin, EPS 4+4 / 8 Pin, SATA, PCI-e 6+2 Pin, 12+4 Pin DIMENSIONS 140 x 150 x 86 mm WARRANTY 5 Years

تفاصيل إضافية

Cooler Master Elite Gold 750 MPX-7505-AFAG is a 750W ATX 12V Ver. 3.1 fully modular PSU with 80 PLUS Gold, Active PFC, 120mm rifle-bearing fan and UVP/OVP/OPP/OTP/SCP protections. Available at Compumarts Egypt. MODEL MPX-7505-AFAG POWER 750W ATX ATX 12V Ver. 3.1 EFFICIENCY 80 PLUS Gold, ≥90% @ Typical Load MODULAR Fully Modular INPUT 100-240V, 5 ~ 10A, 50-60Hz FAN 120mm, Rifle bearing CONNECTORS 24 Pin, EPS 4+4 / 8 Pin, SATA, PCI-e 6+2 Pin, 12+4 Pin DIMENSIONS 140 x 150 x 86 mm WARRANTY 5 Years

المواصفات الفنية

12+4 Pin Connectors

x1 = 1 (650mm)

80 PLUS Rating

80 PLUS Gold

80 Plus Efficiency

Gold

ATX

ATX 12V Ver. 3.1

ATX 24 Pin Connectors

x1 = 1 (550mm)

ATX Version

ATX 12V Ver. 3.1

CONNECTORS

24 Pin, EPS 4+4 / 8 Pin, SATA, PCI-e 6+2 Pin, 12+4 Pin

Category

Specification Details

DIMENSIONS

140 x 150 x 86 mm

Dimensions (L x W x H)

140 x 150 x 86 mm

EFFICIENCY

80 PLUS Gold, ≥90% @ Typical Load

EPS 4+4 Pin / EPS 8 Pin Connectors

x2 = 1 (600+120mm)

Efficiency

≥90% @ Typical Load

ErP 2014 Lot 3

Yes

FAN

120mm, Rifle bearing

Fan Bearing

Rifle bearing

Fan Size

120mm

Form Factor

ATX

Hold Up Time

≥ 11ms @ 100% Load

INPUT

100-240V, 5 ~ 10A, 50-60Hz

Input Current

5 ~ 10A

Input Frequency

50-60Hz

Input Voltage

100-240V

MODEL

MPX-7505-AFAG

MODULAR

Fully Modular

MTBF

>100,000 hours @ 25℃ ambient

Model

MPX-7505-AFAG

Modular

Fully Modular

Operating Temperature

0-40°C

PCI-e 6+2 Pin Connectors

x2 = 1 (500+120mm)

PFC

Active PFC

POWER

750W

Power Good Signal

100 - 150 ms

Product Name

ELITE GOLD 750

Protections

UVP / OVP / OPP / OTP / SCP

Regulatory

cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0

SATA & Peripheral 4 Pin Connectors

X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]

Series

Elite Series

WARRANTY

5 Years

Warranty

5 Years

Watts

750W
