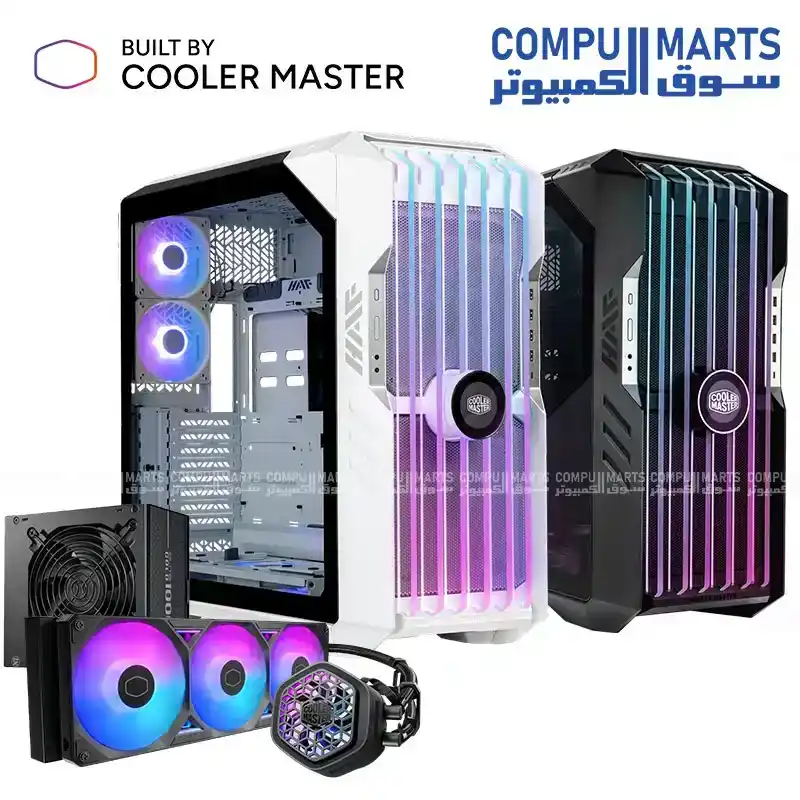

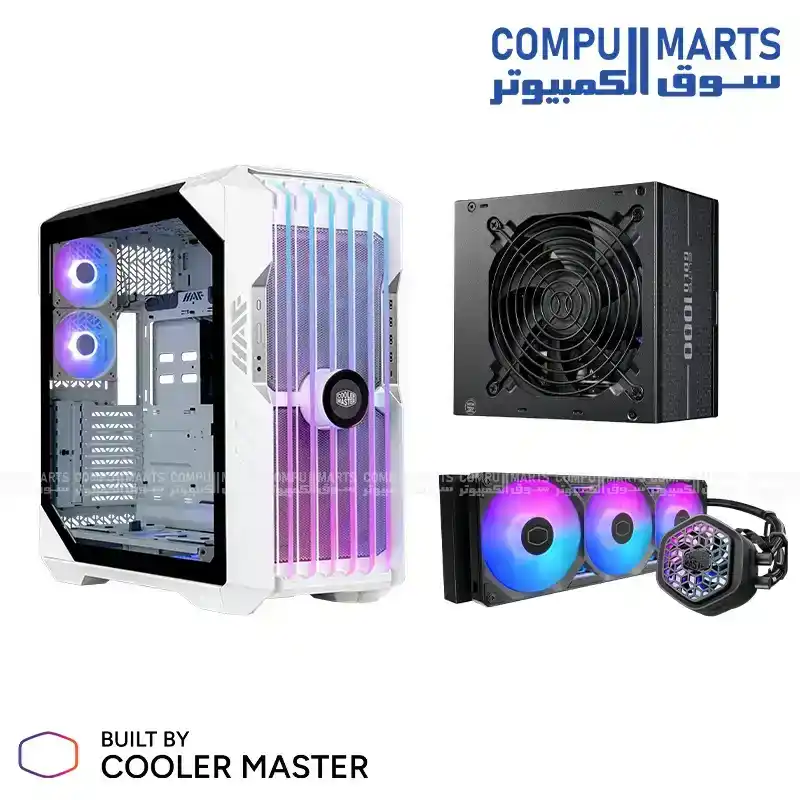

Cooler Master HAF 700 EVO ATX Full Tower Case + Cooler Master Elite Gold 1000 Fully Modular Power Supply + Cooler Master MasterLiquid Atmos VRM 360 Liquid Cooler Bundle

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } Cooler Master HAF 700 EVO ATX Full Tower Case bundled with the Cooler Master Elite Gold 1000 power supply and Cooler Master MasterLiquid Atmos VRM 360 liquid cooler is a PC case bundle featuring ATX Full Tower, 1000W, 80 PLUS Gold, 360 radiator support, and Fully Modular connectivity, available in Egypt through Compumarts. Case Key Specs FORM FACTOR ATX Full Tower CONNECTIVITY 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 (3.0), Audio/Mic Jack WEIGHT 24.3 kg / 53.57 lbs CAPACITY 490 mm Max GPU Length FORM FACTOR E-ATX, ATX, Micro ATX, Mini ITX, SSI CEB, SSI EEB Power Supply Key Specs CAPACITY 1000W FORM FACTOR ATX INTERFACE ATX 12V Ver. 3.1 CONNECTIVITY Fully Modular WARRANTY 80 PLUS Gold Liquid Cooler Key Specs CAPACITY 360 SOCKET Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 SOCKET AMD® AM5 / AM4 CONNECTIVITY 7-Pin PWM + ARGB WARRANTY 6 years Cooler Master HAF 700 EVO ATX Full Tower Case bundled with the Cooler Master Elite Gold 1000 power supply and Cooler Master MasterLiquid Atmos VRM 360 liquid cooler is a PC case bundle featuring ATX Full Tower, 1000W, 80 PLUS Gold, 360 radiator support, and Fully Modular connectivity, available in Egypt through Compumarts. Case Key Specs FORM FACTOR ATX Full Tower CONNECTIVITY 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 (3.0), Audio/Mic Jack WEIGHT 24.3 kg / 53.57 lbs CAPACITY 490 mm Max GPU Length FORM FACTOR E-ATX, ATX, Micro ATX, Mini ITX, SSI CEB, SSI EEB Power Supply Key Specs CAPACITY 1000W FORM FACTOR ATX INTERFACE ATX 12V Ver. 3.1 CONNECTIVITY Fully Modular WARRANTY 80 PLUS Gold Liquid Cooler Key Specs CAPACITY 360 SOCKET Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 SOCKET AMD® AM5 / AM4 CONNECTIVITY 7-Pin PWM + ARGB WARRANTY 6 years

تفاصيل إضافية

Cooler Master HAF 700 EVO ATX Full Tower Case bundled with the Cooler Master Elite Gold 1000 power supply and Cooler Master MasterLiquid Atmos VRM 360 liquid cooler is a PC case bundle featuring ATX Full Tower, 1000W, 80 PLUS Gold, 360 radiator support, and Fully Modular connectivity, available in Egypt through Compumarts. Case Key Specs FORM FACTOR ATX Full Tower CONNECTIVITY 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 (3.0), Audio/Mic Jack WEIGHT 24.3 kg / 53.57 lbs CAPACITY 490 mm Max GPU Length FORM FACTOR E-ATX, ATX, Micro ATX, Mini ITX, SSI CEB, SSI EEB Power Supply Key Specs CAPACITY 1000W FORM FACTOR ATX INTERFACE ATX 12V Ver. 3.1 CONNECTIVITY Fully Modular WARRANTY 80 PLUS Gold Liquid Cooler Key Specs CAPACITY 360 SOCKET Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 SOCKET AMD® AM5 / AM4 CONNECTIVITY 7-Pin PWM + ARGB WARRANTY 6 years

المواصفات الفنية

12+4 Pin Connectors

x1 = 1 (600mm)

80 PLUS Rating

80 PLUS Gold

80 Plus Efficiency

Gold

ATX 24 Pin Connectors

x1 = 1 (600mm)

ATX Version

ATX 12V Ver. 3.1

Brand / Series

Cooler Master HAF 700 EVO

CAPACITY

360

CASE

CONNECTIVITY

7-Pin PWM + ARGB

CPU Socket

Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156

Case Type

ATX Full Tower

Category

Specification Details

Cooler Type

Liquid Cooler

Dimensions (L x W x H)

140 x 150 x 86 mm

Drive Bays

12 x 3.5" / 2.5" Combo (Internal)

EPS 4+4 Pin Connectors

x2 = 2 (700mm)

Efficiency

≥90% @ Typical Load

ErP 2014 Lot 3

Yes

Expansion Slots

8

FORM FACTOR

ATX

Fan Air Pressure

3.61 mmH2O

Fan Airflow

(360) 322.8 m³/h (190 CFM)

Fan Bearing

FDB

Fan Bearing Type

Loop Dynamic Bearing

Fan Connector

7-Pin PWM + ARGB

Fan Dimensions (L x W x H)

(360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)

Fan MTTF

>160,000 Hours

Fan Noise Level

(360) 38.5 dB(A)

Fan Power Consumption

6 W

Fan Quantity

1 PC

Fan Rated Current

0.5 A

Fan Rated Voltage

12 VDC

Fan Safety Current

0.8 A

Fan Size

120mm

Fan Speed

690 ~ 2500 RPM ± 15%

Form Factor

ATX

Front I/O Ports

1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 (3.0), Audio/Mic Jack

Hold Up Time

≥16ms at 80% Load

INTERFACE

ATX 12V Ver. 3.1

Input Current

6 ~ 12A

Input Frequency

50-60Hz

Input Voltage

100-240V

LIQUID COOLER

MTBF

>100,000 hours​ @ 25℃ ambient

Materials

SGCC Steel, Mesh, ABS Plastic, Tempered Glass

Max CPU Cooler Height

166 mm

Max GPU Length

490 mm

Max PSU Length

200 mm

Model

MPW-A001-AFAG

Modular

Fully Modular

Motherboard Support

E-ATX, ATX, Micro ATX, Mini ITX, SSI CEB, SSI EEB

Operating Temperature

0-40°C

PCI-e 6+2 Pin Connectors

x6 = 3 (550+120mm)

PFC

Active PFC

POWER SUPPLY

Peripheral 4 Pin Connectors

x3 = 1 (500+100+100mm)

Power Good Signal

100 - 150 ms

Pre-installed Fans

Front: 2x 200mm PWM SickleFlow | Rear: 2x 120mm ARGB | Bottom: 1x 120mm ARGB

Product Name

ELITE GOLD 1000

Product Number

(360 Black) MLX-D36M-A25SZ-V1

Profile

Addressable Gen 2 RGB

Protections

UVP / OVP / OPP / OTP / SCP

Pump Connector

3-Pin ARGB + 4-Pin PWM

Pump Dimensions

92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)

Pump MTTF

>210,000 Hours

Pump Noise Level

25 dBA (Max)

Pump Power Consumption

3.84 W

Pump Profiles

Addressable Gen2 RGB

Pump Rated Voltage

12 VDC

Pump Speed

3400 ± 300 RPM

Radiator Dimensions

(360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)

Radiator Material

Aluminum

Radiator Size

360

Radiator Support (Max)

Top: up to 2x 360mm or 1x 420mm | Side: 480mm | Front/Bottom: 420mm

Regulatory

cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH

SATA Connectors

x9 = 3 (500+100+100mm)

SOCKET

AMD® AM5 / AM4

Series

MasterLiquid

Tube Length

(360) 400 mm

VRM Fan Dimensions

85 x 78.5 x 25.5 mm (3.4 x 3.1 x 1 inch)

VRM Fan Exterior Color

Black / White

VRM Fan Fan Air Pressure

2.8 mmH₂O

VRM Fan Fan Airflow

15.8 m³/h (9.3 CFM)

VRM Fan Fan Bearing Type

Loop Dynamic Bearing

VRM Fan Fan Connector

4-Pin PWM

VRM Fan Fan MTTF

>50,000 Hours

VRM Fan Fan Noise Level

36 dB (A)

VRM Fan Fan Rated Current

0.15 A

VRM Fan Fan Rated Voltage

12 VDC

VRM Fan Fan Safety Current

0.25 A

VRM Fan Fan Speed

450~4000 RPM ±10%

VRM Fan Power Consumption

1.8 W

VRM Fan Wire Length

1000 mm

WARRANTY

6 years

WEIGHT

24.3 kg / 53.57 lbs

Warranty

6 years

Watts

1000W

Weight

24.3 kg / 53.57 lbs
