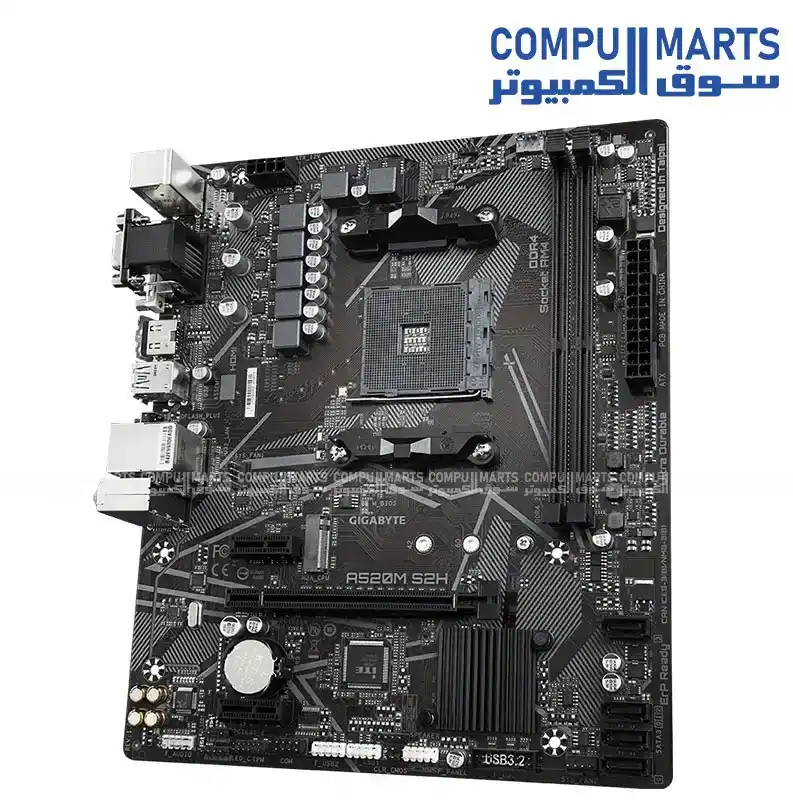

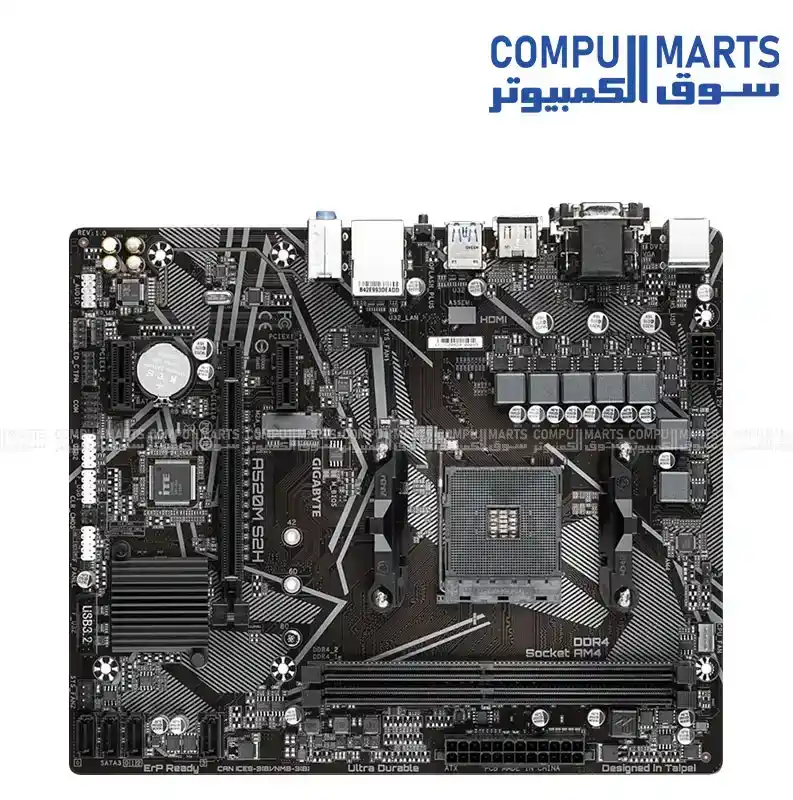

GIGABYTE A520M S2H (Rev. 1.x) Motherboard AMD Socket AM4 Micro ATX

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } GIGABYTE A520M S2H (Rev. 1.x) Motherboard is a motherboard featuring AMD Socket AM4, AMD A520 chipset, and 2 x DDR4 DIMM sockets, making it an AMD A520 motherboard option available in Egypt through Compumarts. Key specs SOCKET AMD Socket AM4 CHIPSET AMD A520 MEMORY 2 x DDR4 DIMM sockets supporting up to 64 GB FORM FACTOR Micro ATX Form Factor; 24.4cm x 20.5cm GIGABYTE A520M S2H (Rev. 1.x) Motherboard is a motherboard featuring AMD Socket AM4, AMD A520 chipset, and 2 x DDR4 DIMM sockets, making it an AMD A520 motherboard option available in Egypt through Compumarts. Key specs SOCKET AMD Socket AM4 CHIPSET AMD A520 MEMORY 2 x DDR4 DIMM sockets supporting up to 64 GB FORM FACTOR Micro ATX Form Factor; 24.4cm x 20.5cm

تفاصيل إضافية

GIGABYTE A520M S2H (Rev. 1.x) Motherboard is a motherboard featuring AMD Socket AM4, AMD A520 chipset, and 2 x DDR4 DIMM sockets, making it an AMD A520 motherboard option available in Egypt through Compumarts. Key specs SOCKET AMD Socket AM4 CHIPSET AMD A520 MEMORY 2 x DDR4 DIMM sockets supporting up to 64 GB FORM FACTOR Micro ATX Form Factor; 24.4cm x 20.5cm

المواصفات الفنية

Audio

Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

BIOS

1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

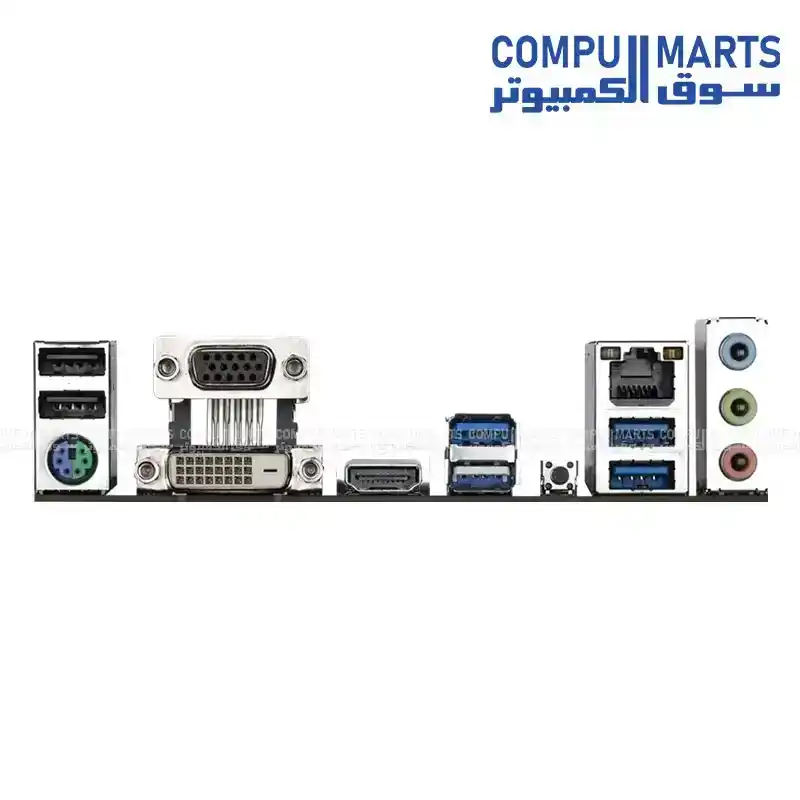

Back Panel Connectors

1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x Q-Flash Plus button, 3 x audio jacks

Bundled Software

Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility

CHIPSET

AMD A520

CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

Category

Specification Details

Chipset

AMD A520

D-Sub Port

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

DVI-D Port

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz (does not support D-Sub connection by adapter)

ECC Memory Support

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (ECC mode support varies by CPU)

Expansion Slots (CPU)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Expansion Slots (Chipset)

2 x PCI Express x1 slots, supporting PCIe 3.0

FORM FACTOR

Micro ATX Form Factor; 24.4cm x 20.5cm

Fan Headers Capability

All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W

Form Factor

Micro ATX Form Factor; 24.4cm x 20.5cm

H/W Monitoring

Voltage, Temperature, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control

HDMI Port

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version, HDCP 2.3, and HDR)

I/O Controller

iTE® I/O Controller Chip

Internal I/O Connectors

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x speaker header, 1 x chassis intrusion header, 1 x Clear CMOS jumper

LAN

Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

MEMORY

2 x DDR4 DIMM sockets supporting up to 64 GB

Memory

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Memory Architecture

Dual channel memory architecture

Memory Profile

Support for Extreme Memory Profile (XMP) memory modules

Memory Speed

Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Multi-Display Support

Support for up to 3 displays at the same time

Non-ECC Memory Support

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support

Operating System

Support for Windows 11 64-bit, Support for Windows 10 64-bit

RAID Support

Support for RAID 0, RAID 1, and RAID 10

SOCKET

AMD Socket AM4

Shared Memory

Maximum shared memory of 16 GB

Storage Interface (CPU)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Storage Interface (Chipset)

4 x SATA 6Gb/s connectors

USB (CPU)

4 x USB 3.2 Gen 1 ports on the back panel

USB (Chipset)

2 x USB 3.2 Gen 1 ports available through the internal USB header, 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Unique Features

Support for APP Center (@BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer), Support for Q-Flash Plus, Support for Q-Flash
