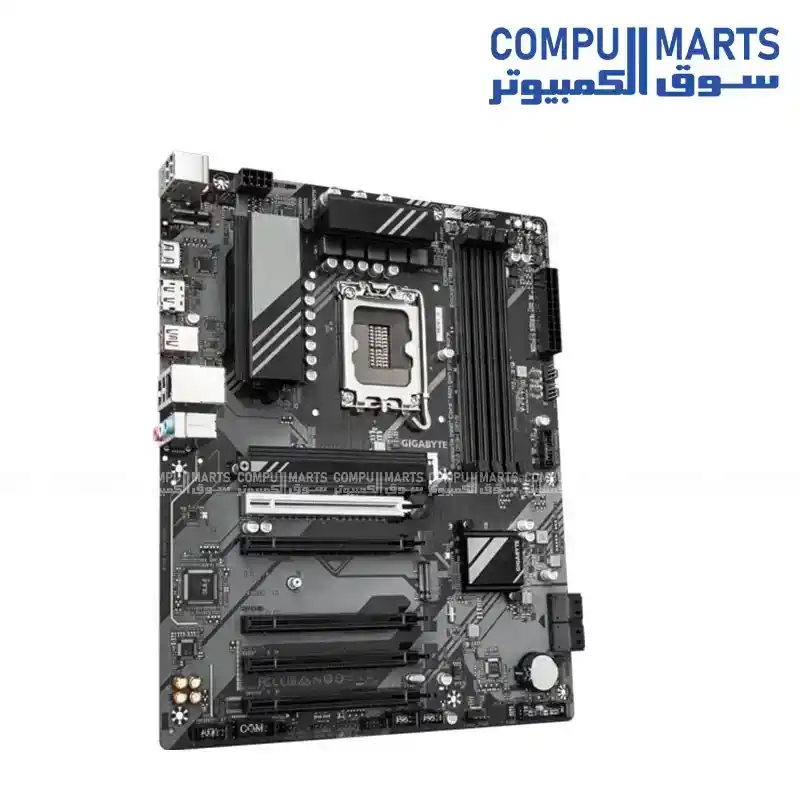

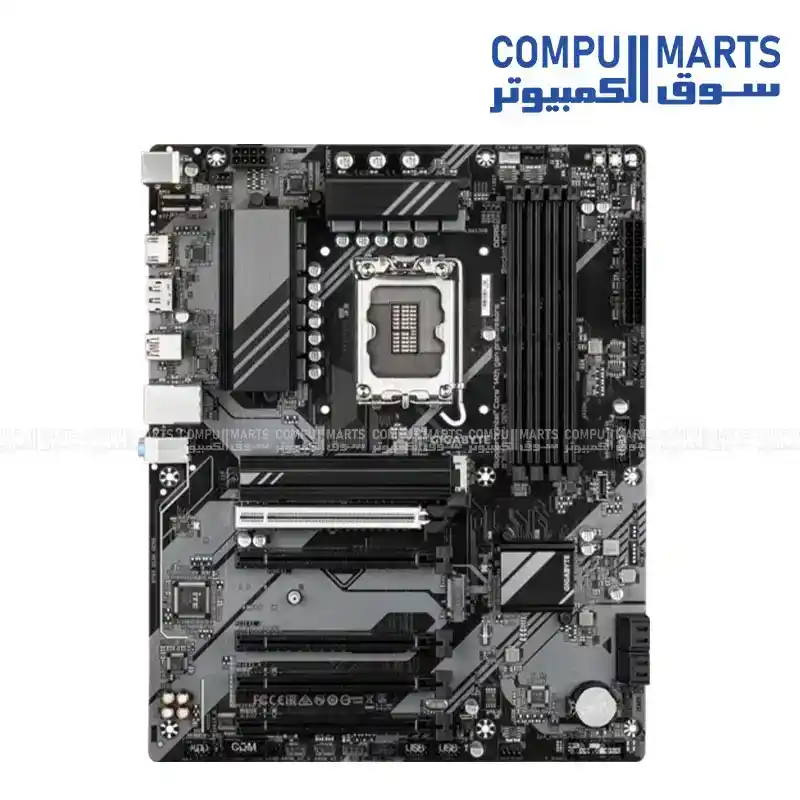

GIGABYTE B760 DS3H GEN5 ATX Motherboard for LGA1700 Intel Processors with DDR5 Support, PCIe 5.0 x16, Dual M.2 PCIe 4.0 and USB 3.2 Gen 2x2

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } GIGABYTE B760 DS3H GEN5 is a motherboard featuring a LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, an Intel® B760 Express Chipset, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, and 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support), making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors CHIPSET Intel® B760 Express Chipset MEMORY 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory INTERFACE 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 STORAGE 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) GIGABYTE B760 DS3H GEN5 is a motherboard featuring a LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, an Intel® B760 Express Chipset, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, and 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support), making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors CHIPSET Intel® B760 Express Chipset MEMORY 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory INTERFACE 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 STORAGE 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)

تفاصيل إضافية

GIGABYTE B760 DS3H GEN5 is a motherboard featuring a LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, an Intel® B760 Express Chipset, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, and 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support), making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors CHIPSET Intel® B760 Express Chipset MEMORY 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory INTERFACE 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 STORAGE 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)

المواصفات الفنية

Audio

Realtek® Audio CODEC

Audio Channels

High Definition Audio, 2/4/5.1/7.1-channel

CHIPSET

Intel® B760 Express Chipset

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Category

Specification Details

Chipset

Intel® B760 Express Chipset

DisplayPort

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

ECC Support

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Expansion Slot

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Graphics

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

INTERFACE

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

Internal USB 2.0

4 x USB 2.0/1.1 ports available through the internal USB headers

Internal USB 3.2

2 x USB 3.2 Gen 1 ports available through the internal USB header

Internal USB-C

1 x USB Type-C® port with USB 3.2 Gen 1 support

LAN

Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

M.2 CPU

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)

M.2 Chipset

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

MEMORY

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Memory

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) /6400(O.C.) /6200(O.C.) /6000(O.C.) /5800(O.C.) /5600(O.C.) /5400(O.C.) /5200(O.C.) /4800 /4000 MT/s memory modules

Memory Architecture

Dual channel memory architecture

Memory Sockets

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Non-ECC Support

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Operating System

Support for Windows 10 64-bit

PCIe x1 Slots

4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1

RAID

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

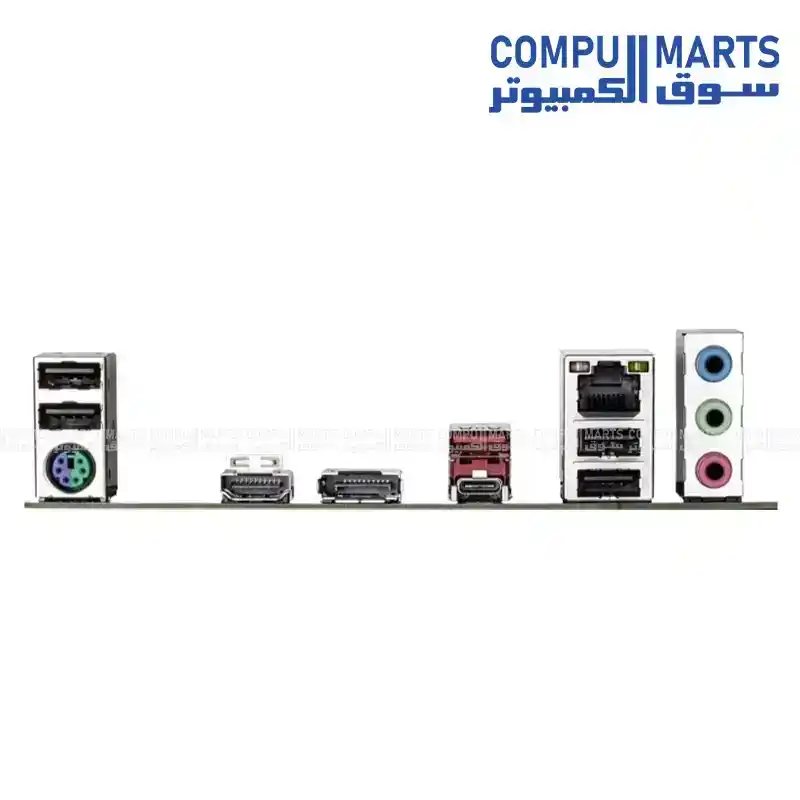

Rear USB 2.0

4 x USB 2.0/1.1 ports

Rear USB-A

1 x USB 3.2 Gen 2 Type-A port (red)

Rear USB-C

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

S/PDIF

Support for S/PDIF Out

SATA

4 x SATA 6Gb/s connectors

SOCKET

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

STORAGE

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)

XMP Support

Support for Extreme Memory Profile (XMP) memory modules
