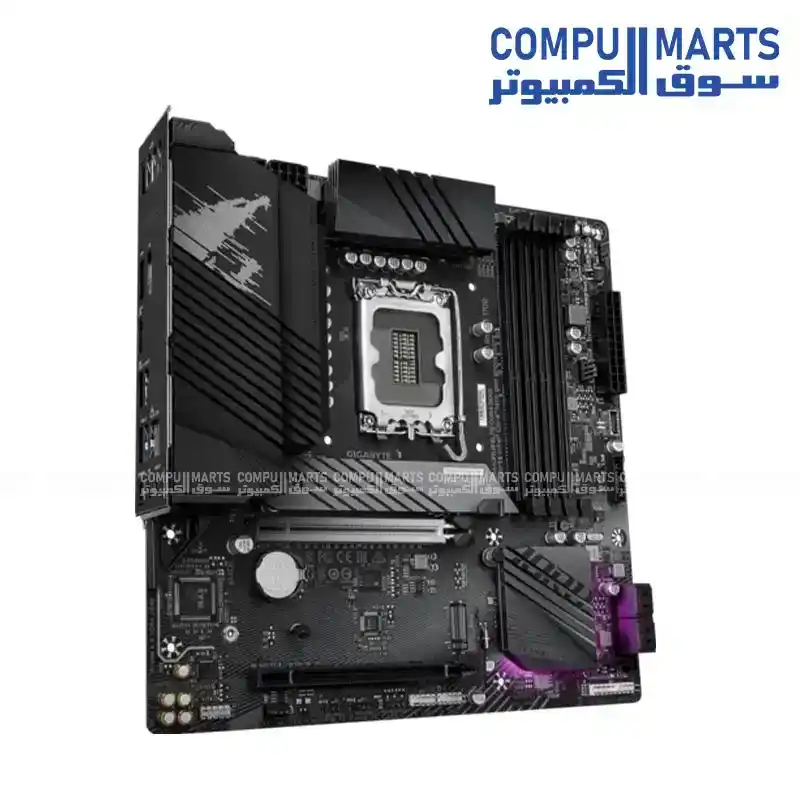

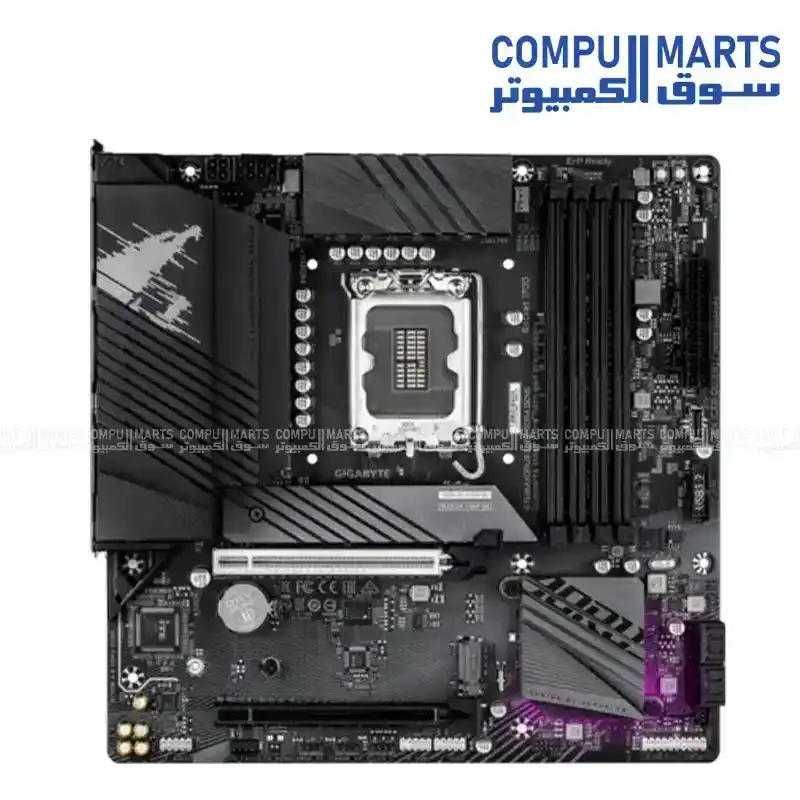

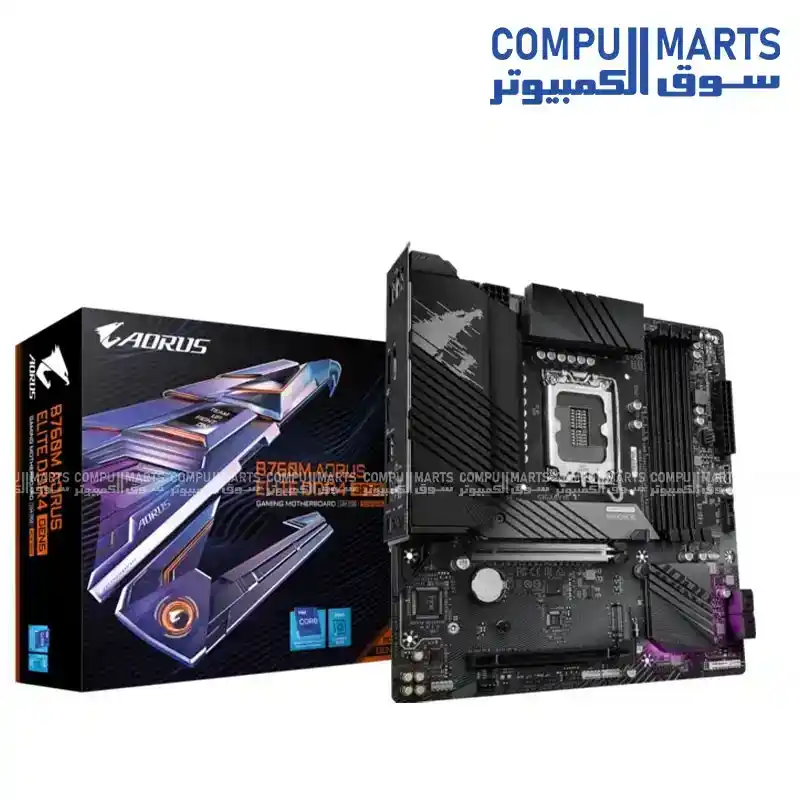

GIGABYTE B760M AORUS ELITE DDR4 GEN5 Motherboard

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } GIGABYTE B760M AORUS ELITE DDR4 GEN5 is a motherboard featuring LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, an Intel® B760 Express Chipset, DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory support, PCIe 5.0 x16, and Realtek® 2.5GbE LAN, making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors CHIPSET Intel® B760 Express Chipset MEMORY DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules INTERFACE 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 CONNECTIVITY Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) GIGABYTE B760M AORUS ELITE DDR4 GEN5 is a motherboard featuring LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, an Intel® B760 Express Chipset, DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory support, PCIe 5.0 x16, and Realtek® 2.5GbE LAN, making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors CHIPSET Intel® B760 Express Chipset MEMORY DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules INTERFACE 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 CONNECTIVITY Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

تفاصيل إضافية

GIGABYTE B760M AORUS ELITE DDR4 GEN5 is a motherboard featuring LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, an Intel® B760 Express Chipset, DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory support, PCIe 5.0 x16, and Realtek® 2.5GbE LAN, making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors CHIPSET Intel® B760 Express Chipset MEMORY DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules INTERFACE 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 CONNECTIVITY Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

المواصفات الفنية

ARGB Headers

3 x Addressable RGB Gen2 LED strip headers

Additional CPU Power

1 x 4-pin ATX 12V power connector

Audio

Realtek® ALC1220 CODEC

Audio Channels

High Definition Audio, 2/4/5.1/7.1-channel

Audio Jacks

2

BIOS

1 x 256 Mbit flash, AMI UEFI BIOS

Brand

GIGABYTE

Bundled Software

Norton® Internet Security (OEM version), LAN bandwidth management software

CHIPSET

Intel® B760 Express Chipset

CONNECTIVITY

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

CPU Fan Header

1

CPU Power

1 x 8-pin ATX 12V power connector

CPU Support

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Category

Specification Details

Chipset

Intel® B760 Express Chipset

Clear CMOS Jumper

1

Dimensions

24.4cm x 24.4cm

DisplayPort

1 x DisplayPort, supporting up to 4096x2304@60 Hz, DisplayPort 1.2, HDCP 2.3

ECC Support

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Form Factor

Micro ATX

Front Audio Header

1

HDMI

1 x HDMI port, supporting up to 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3

Hardware Monitoring

Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control

I/O Controller

iTE® I/O Controller Chip

INTERFACE

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

M.2 CPU

1 x M.2 Socket 3 (2280 PCIe 4.0 x4/x2 SSD support)

M.2 Chipset

1 x M.2 Socket 3 (22110/2280 PCIe 4.0 x4/x2 SSD support)

MEMORY

DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

Maximum Memory

Up to 128 GB (32 GB single DIMM capacity)

Memory Architecture

Dual channel

Memory Slots

4 x DDR4 DIMM sockets

Memory Support

DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

Model

B760M AORUS ELITE DDR4 GEN5

Non-ECC Support

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Operating System

Windows 11 64-bit, Windows 10 64-bit

Optical Audio

1 x Optical S/PDIF Out

PCIe x16 (CPU)

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

PCIe x16 (Chipset)

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4

Power Connector

1 x 24-pin ATX main power connector

Product Type

Micro ATX Motherboard

Q-Flash Plus Button

1

RAID

RAID 0, RAID 1, RAID 5, RAID 10

RGB Header

1

RJ-45

1

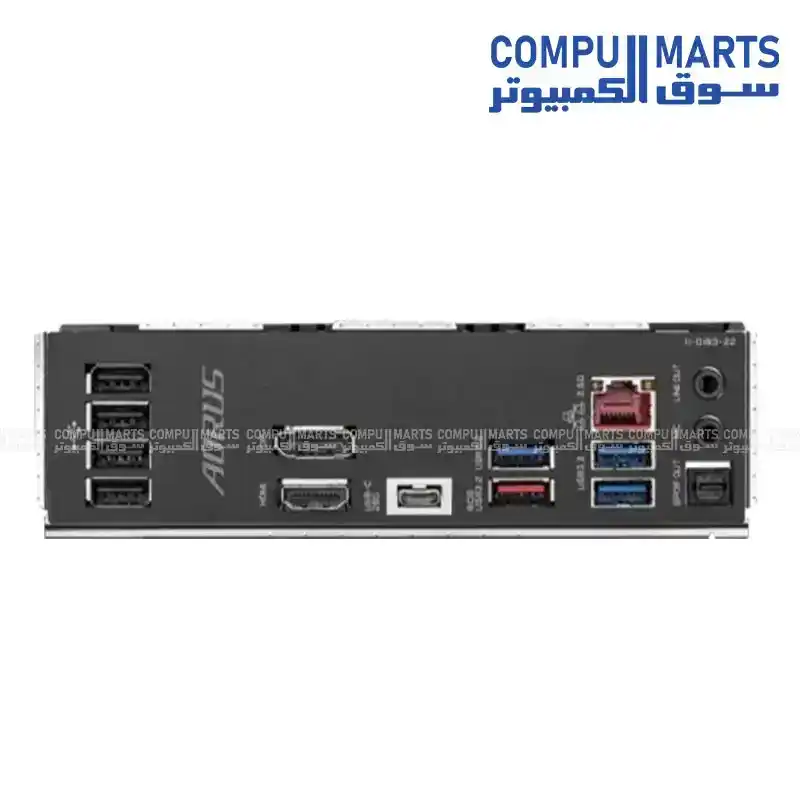

Rear USB

1 x USB Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0

Reset Button

1

Reset Jumper

1

S/PDIF

Support for S/PDIF Out

SATA

4 x SATA 6Gb/s connectors

SOCKET

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

System Fan Headers

3

TPM Header

1

Thunderbolt Headers

2

USB 2.0

8 ports

USB 2.0 Headers

2

USB 3.2 Gen 1

5 ports

USB 3.2 Gen 1 Header

1

USB 3.2 Gen 2 Type-A

1 x USB 3.2 Gen 2 Type-A port (red)

USB Type-C Header

1

USB Type-C Rear

1 x USB Type-C® port with USB 3.2 Gen 2x2 support

XMP Support

Support for Extreme Memory Profile (XMP) memory modules
