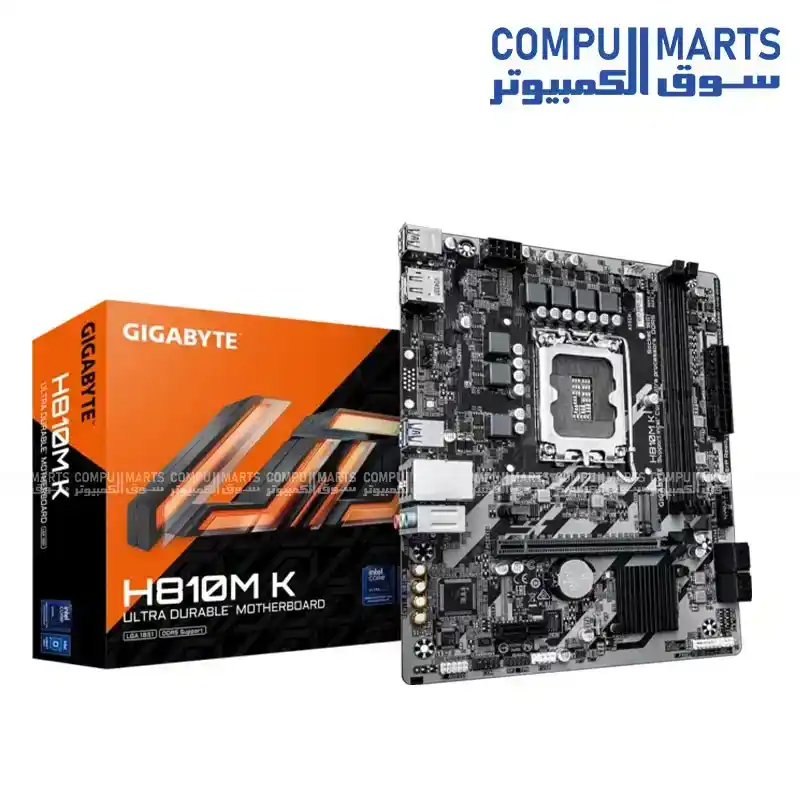

GIGABYTE H810M-K Micro ATX Motherboard – LGA1851, Intel H810 Chipset, DDR5 128GB, PCIe 4.0 x16, M.2 PCIe 4.0, DisplayPort 2.1 & HDMI 2.1

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } GIGABYTE H810M-K Micro ATX Motherboard is a motherboard featuring a LGA1851 socket with support for Intel® Core™ Ultra Processors, an Intel® H810 Express Chipset, DDR5 6400/5600 MT/s memory support, PCIe 4.0 x16, and an M.2 PCIe 4.0 x4/x2 connector, making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1851 socket: Support for Intel® Core™ Ultra Processors CHIPSET Intel® H810 Express Chipset MEMORY DDR5 6400/5600 MT/s memory modules INTERFACE 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 FORM FACTOR Micro ATX Form Factor; 22.6cm x 18.5cm GIGABYTE H810M-K Micro ATX Motherboard is a motherboard featuring a LGA1851 socket with support for Intel® Core™ Ultra Processors, an Intel® H810 Express Chipset, DDR5 6400/5600 MT/s memory support, PCIe 4.0 x16, and an M.2 PCIe 4.0 x4/x2 connector, making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1851 socket: Support for Intel® Core™ Ultra Processors CHIPSET Intel® H810 Express Chipset MEMORY DDR5 6400/5600 MT/s memory modules INTERFACE 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 FORM FACTOR Micro ATX Form Factor; 22.6cm x 18.5cm

تفاصيل إضافية

GIGABYTE H810M-K Micro ATX Motherboard is a motherboard featuring a LGA1851 socket with support for Intel® Core™ Ultra Processors, an Intel® H810 Express Chipset, DDR5 6400/5600 MT/s memory support, PCIe 4.0 x16, and an M.2 PCIe 4.0 x4/x2 connector, making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1851 socket: Support for Intel® Core™ Ultra Processors CHIPSET Intel® H810 Express Chipset MEMORY DDR5 6400/5600 MT/s memory modules INTERFACE 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 FORM FACTOR Micro ATX Form Factor; 22.6cm x 18.5cm

المواصفات الفنية

Audio

Realtek® Audio CODEC

Audio Channels

High Definition Audio, 2/4/5.1/7.1-channel

Audio Jacks

3

BIOS

1 x 256 Mbit flash, AMI UEFI BIOS

Brand

GIGABYTE

Bundled Software

Norton® Internet Security (OEM version), LAN bandwidth management software

CHIPSET

Intel® H810 Express Chipset

CPU Fan Header

1

CPU Power

1 x 8-pin ATX 12V power connector

CPU Support

LGA1851 socket: Support for Intel® Core™ Ultra Processors

Category

Specification Details

Chipset

Intel® H810 Express Chipset

Clear CMOS

1 jumper

Dimensions

22.6cm x 18.5cm

DisplayPort

1 x DisplayPort supporting up to 4096x2304@60 Hz (DisplayPort 2.1, HDCP 2.3)

ECC Support

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

FORM FACTOR

Micro ATX Form Factor; 22.6cm x 18.5cm

Features

GIGABYTE Control Center (GCC), Q-Flash, Smart Backup

Form Factor

Micro ATX

Front Audio Header

1

Front Panel Header

1

HDMI

1 x HDMI supporting up to 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3)

Hardware Monitoring

Voltage, temperature, fan speed, water cooling flow rate, fan fail warning, fan speed control

I/O Controller

iTE® I/O Controller Chip

INTERFACE

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

LAN

Realtek® GbE LAN chip (10/100/1000 Mbps)

M.2

1 x M.2 Socket 3 (2280 PCIe 4.0 x4/x2 SSD support)

MEMORY

DDR5 6400/5600 MT/s memory modules

Maximum Memory

Up to 128 GB (64 GB single DIMM capacity)

Memory Architecture

Dual channel

Memory Slots

2 x DDR5 DIMM sockets

Memory Support

DDR5 6400/5600 MT/s memory modules

Model

H810M-K

Non-ECC Support

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Operating System

Windows 11 64-bit, Windows 10 64-bit

PCIe x1

1 x PCI Express x1 slot (PCIe 3.0 x1)

PCIe x16

1 x PCI Express x16 slot (PCIe 4.0 x16)

Power Connector

1 x 24-pin ATX main power connector

Product Type

Micro ATX Motherboard

RJ-45

1

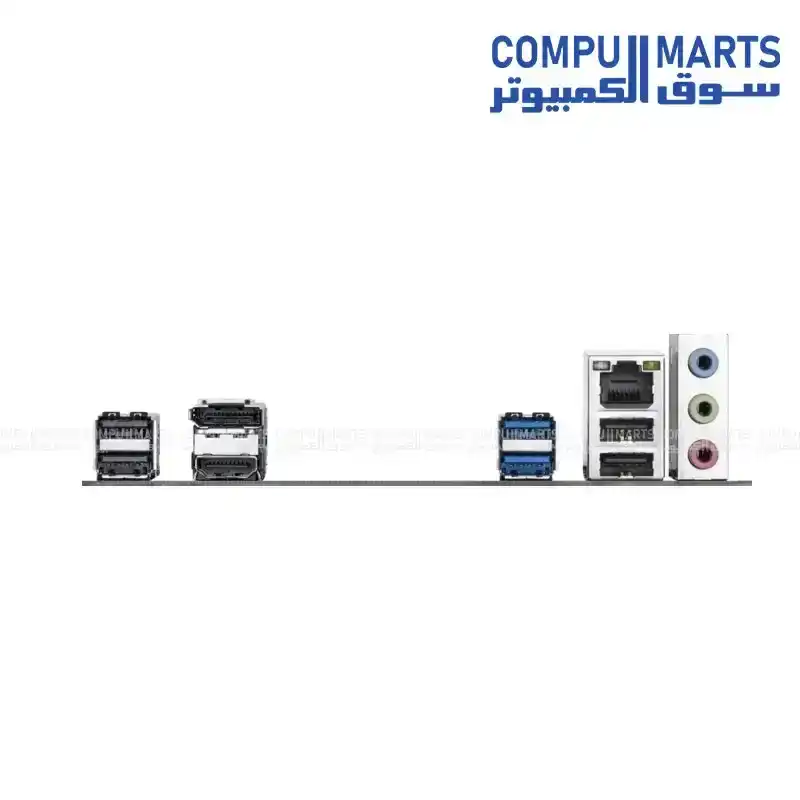

Rear Display Outputs

1 x DisplayPort, 1 x HDMI

Rear USB

2 x USB 3.2 Gen 1, 4 x USB 2.0

SATA

4 x SATA 6Gb/s connectors

SOCKET

LGA1851 socket: Support for Intel® Core™ Ultra Processors

Serial Port Header

1

System Fan Header

1

TPM Header

1

USB 2.0

6 ports (4 rear, 2 via header)

USB 2.0 Header

1

USB 3.2 Gen 1

4 ports (2 rear, 2 via header)

USB 3.2 Header

1

XMP Support

Support for Extreme Memory Profile (XMP) memory modules
