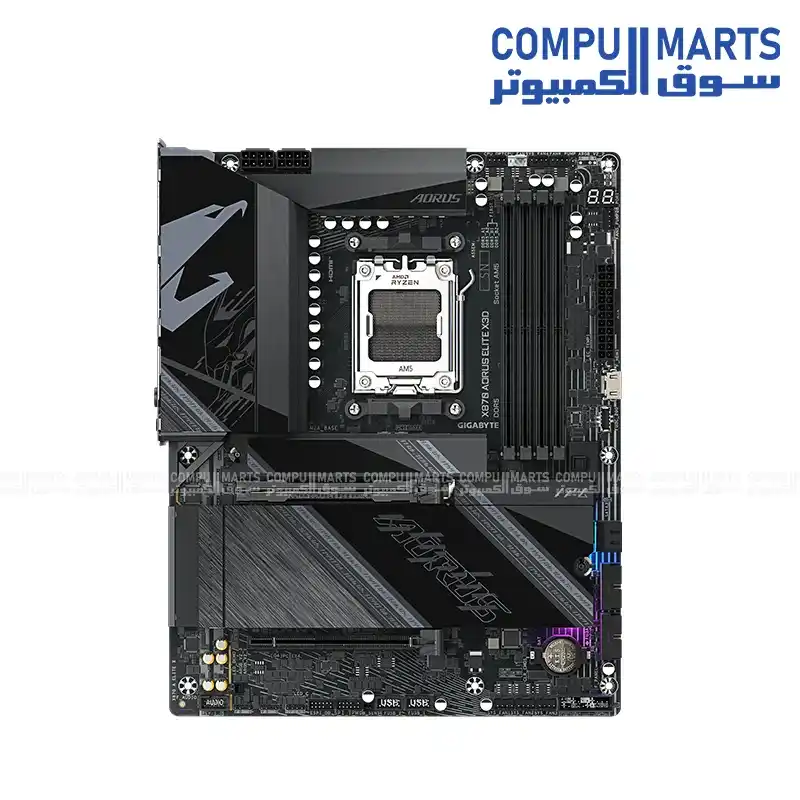

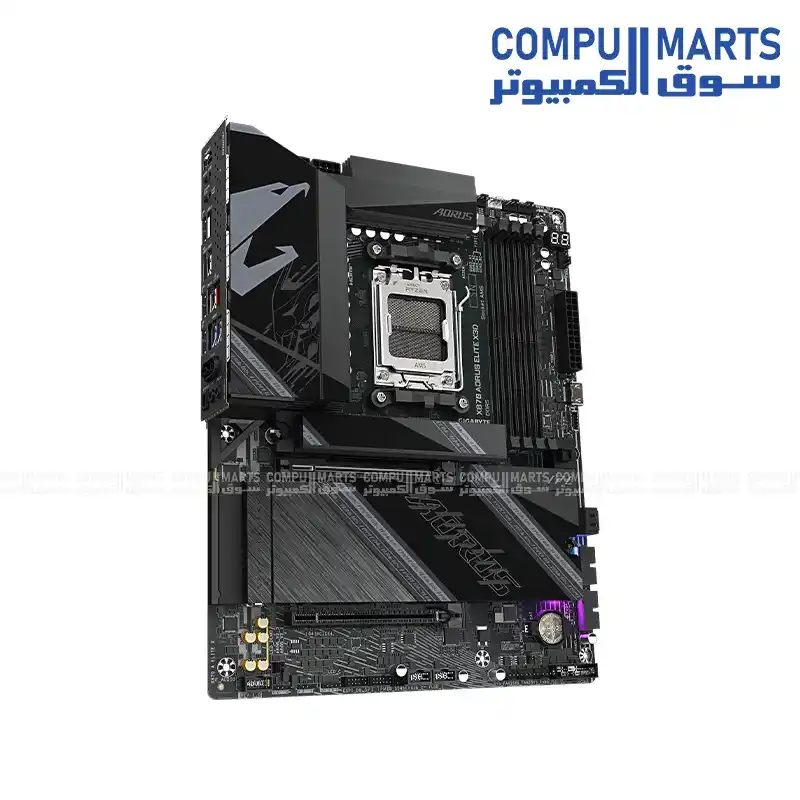

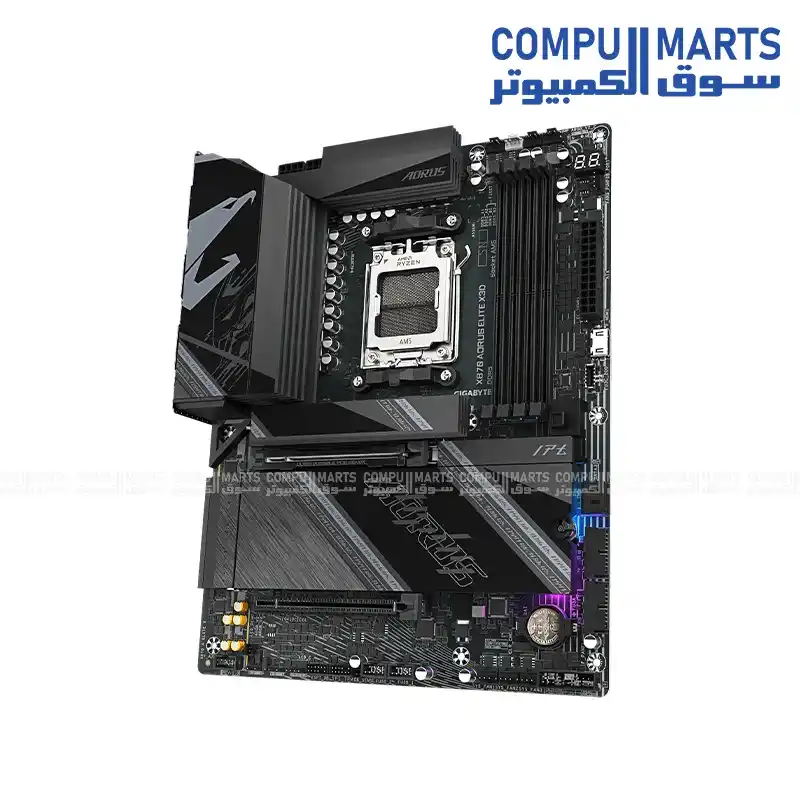

GIGABYTE X870 AORUS ELITE X3D ATX AM5 Motherboard, AMD X870 Chipset, DDR5 8800MHz OC, PCIe 5.0, Dual USB4, Wi-Fi 7, 5GbE LAN

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } GIGABYTE X870 AORUS ELITE X3D is an ATX motherboard featuring an AMD X870 chipset, support for DDR5 8800(O.C) memory, PCIe 5.0 x16 expansion, Wi-Fi 7 connectivity, and USB4 ports, making it an AM5 motherboard available in Egypt through Compumarts. Key specs CHIPSET AMD X870 SOCKET AMD Socket AM5 MEMORY DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s WIRELESS Qualcomm Wi-Fi 7 QCNCM865, Bluetooth 5.4 CONNECTIVITY Realtek 5GbE LAN PORTS 2 x USB4 Type-C, HDMI, USB 3.2 Gen2 Type-C GIGABYTE X870 AORUS ELITE X3D is an ATX motherboard featuring an AMD X870 chipset, support for DDR5 8800(O.C) memory, PCIe 5.0 x16 expansion, Wi-Fi 7 connectivity, and USB4 ports, making it an AM5 motherboard available in Egypt through Compumarts. Key specs CHIPSET AMD X870 SOCKET AMD Socket AM5 MEMORY DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s WIRELESS Qualcomm Wi-Fi 7 QCNCM865, Bluetooth 5.4 CONNECTIVITY Realtek 5GbE LAN PORTS 2 x USB4 Type-C, HDMI, USB 3.2 Gen2 Type-C

تفاصيل إضافية

GIGABYTE X870 AORUS ELITE X3D is an ATX motherboard featuring an AMD X870 chipset, support for DDR5 8800(O.C) memory, PCIe 5.0 x16 expansion, Wi-Fi 7 connectivity, and USB4 ports, making it an AM5 motherboard available in Egypt through Compumarts. Key specs CHIPSET AMD X870 SOCKET AMD Socket AM5 MEMORY DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s WIRELESS Qualcomm Wi-Fi 7 QCNCM865, Bluetooth 5.4 CONNECTIVITY Realtek 5GbE LAN PORTS 2 x USB4 Type-C, HDMI, USB 3.2 Gen2 Type-C

المواصفات الفنية

24-pin Power

1

8-pin CPU Power

2

ARGB Headers

3

Audio Channels

2 / 4 / 5.1 / 7.1 Channel HD Audio

Audio Codec

Realtek ALC1220

Audio Jacks

2

BIOS

1 x 512 Mbit AMI UEFI BIOS

Bluetooth

Bluetooth 5.4

CHIPSET

AMD X870

CONNECTIVITY

Realtek 5GbE LAN

CPU

AMD Socket AM5, support for AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors

CPU Fan Headers

2

Category

Specification Details

Chipset

AMD X870

Clear CMOS Button

1

Digital Audio

Optical S/PDIF Out

Dimensions

30.5 cm × 24.4 cm

Form Factor

ATX

Front Audio Header

1

Front HDMI

1 x HDMI 1.4 supporting up to 1920×1080@30Hz

Front Panel Header

1

HDMI

1 x HDMI 2.1 supporting up to 4096×2160@60Hz

Internal USB-C

USB 3.2 Gen2x2 Header

Internal USB2

2 Headers

Internal USB3

2 Headers

LAN

Realtek 5GbE LAN

M.2 CPU 1

PCIe 5.0 x4/x2

M.2 CPU 2

PCIe 5.0 x4/x2

M.2 Chipset

2 x PCIe 4.0 x4/x2

M.2 Connectors

4

MEMORY

DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s

Maximum Memory

Up to 256 GB (64 GB single DIMM capacity)

Memory

Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules

Memory Architecture

Dual channel

Memory Profiles

AMD EXPO™ and Intel XMP

Memory Slots

4 x DDR5 DIMM sockets

Memory Support

Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16

Noise Detection Header

1

Onboard Graphics

Integrated AMD Radeon™ Graphics

Operating System

Windows 11 64-bit

Optical Audio

1 x S/PDIF

PCIe x16 (CPU)

1 x PCIe 5.0 x16

PCIe x16 (Chipset)

1 x PCIe 4.0 x4

PORTS

2 x USB4 Type-C, HDMI, USB 3.2 Gen2 Type-C

Power Button

1

Q-Flash

Supported

Q-Flash Plus

Supported

Q-Flash Plus Button

1

RAID NVMe

RAID 0 / 1 / 5 / 10

RAID SATA

RAID 0 / 1

RGB Header

1

RJ-45

1

Rear HDMI

1

Rear USB 3.2 Gen1

4 Ports

Rear USB-A

2 x USB 3.2 Gen2 Type-A

Rear USB-C

1 x USB 3.2 Gen2 Type-C

Rear USB2

1 Port

Rear USB4

2 x USB4 Type-C

Reset Button

1

SATA

2 x SATA 6Gb/s

SATA Ports

2

SOCKET

AMD Socket AM5

Smart Backup

Supported

Software

GIGABYTE Control Center (GCC)

System Fan Headers

6

TPM Header

1

Temperature Sensor Headers

2

USB4 Video Outputs

2 x USB4 Type-C supporting DisplayPort, up to 3840×2160@240Hz

WIRELESS

Qualcomm Wi-Fi 7 QCNCM865, Bluetooth 5.4

Wi-Fi Antenna

2 Connectors

Wi-Fi Standards

802.11a/b/g/n/ac/ax/be

Wireless

Qualcomm Wi-Fi 7 QCNCM865
