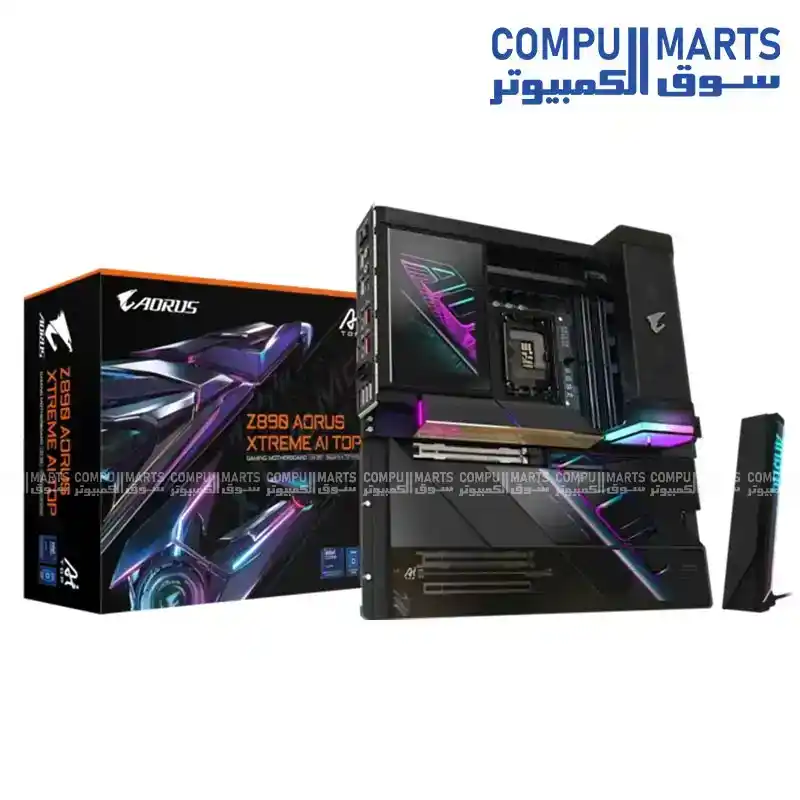

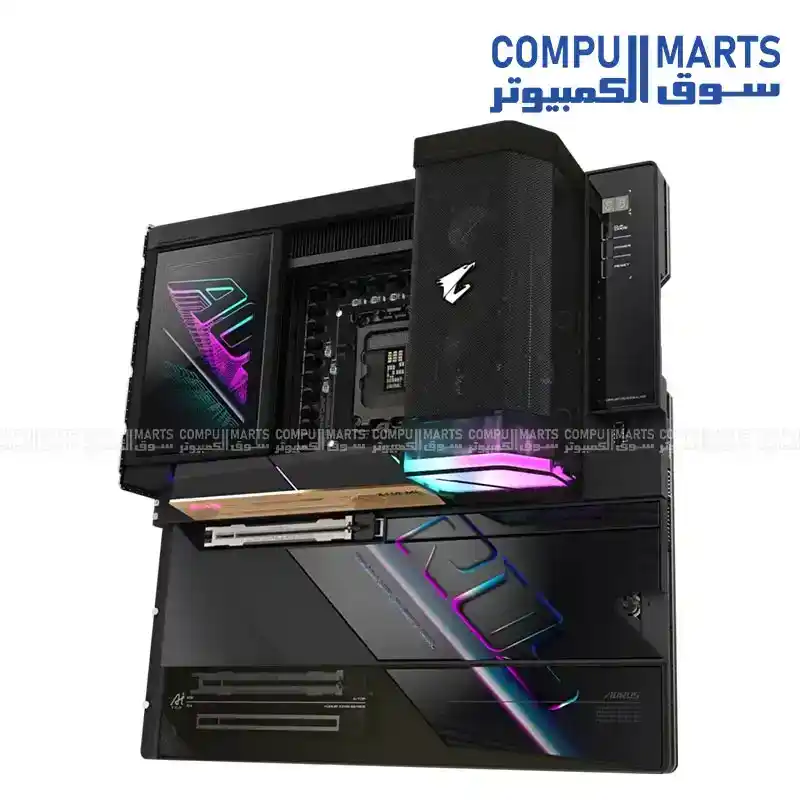

GIGABYTE Z890 AORUS XTREME AI TOP Motherboard, Intel Z890, LGA1851, DDR5 9500MHz OC, PCIe 5.0, Thunderbolt 5, Wi-Fi 7, Dual 10GbE LAN, E-ATX

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } GIGABYTE Z890 AORUS XTREME AI TOP Motherboard is a motherboard featuring an LGA1851 socket, an Intel® Z890 Express Chipset, support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s, 2 x Intel® Thunderbolt™ 5 ports, and Intel® Wi-Fi 7 BE200NGW, making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1851 CHIPSET Intel® Z890 Express Chipset MEMORY DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s WIRELESS Intel® Wi-Fi 7 BE200NGW PORTS 2 x Intel® Thunderbolt™ 5 (USB4® USB Type-C®) FORM FACTOR E-ATX GIGABYTE Z890 AORUS XTREME AI TOP Motherboard is a motherboard featuring an LGA1851 socket, an Intel® Z890 Express Chipset, support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s, 2 x Intel® Thunderbolt™ 5 ports, and Intel® Wi-Fi 7 BE200NGW, making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1851 CHIPSET Intel® Z890 Express Chipset MEMORY DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s WIRELESS Intel® Wi-Fi 7 BE200NGW PORTS 2 x Intel® Thunderbolt™ 5 (USB4® USB Type-C®) FORM FACTOR E-ATX

تفاصيل إضافية

GIGABYTE Z890 AORUS XTREME AI TOP Motherboard is a motherboard featuring an LGA1851 socket, an Intel® Z890 Express Chipset, support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s, 2 x Intel® Thunderbolt™ 5 ports, and Intel® Wi-Fi 7 BE200NGW, making it a motherboard available in Egypt through Compumarts. Key specs SOCKET LGA1851 CHIPSET Intel® Z890 Express Chipset MEMORY DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s WIRELESS Intel® Wi-Fi 7 BE200NGW PORTS 2 x Intel® Thunderbolt™ 5 (USB4® USB Type-C®) FORM FACTOR E-ATX

المواصفات الفنية

320MHz Wi-Fi

Supported

ACPI

ACPI 5.0

Audio

High Definition Audio

Audio Channels

2-channel

Audio DAC

1 ESS ES9280AC DAC + 2 ESS ES9080

Audio Jacks

2

Audio Technology

DTS® Sound Unbound™

BIOS

1 x 256 Mbit Flash

BIOS Type

AMI UEFI BIOS

Bluetooth

Bluetooth 5.4

Bundled Software

Norton® Internet Security (OEM Version)

CHIPSET

Intel® Z890 Express Chipset

CPU Fan Header

1

CPU M.2 1

PCIe 5.0 x4/x2 (25110/22110/2580/2280)

CPU M.2 2

PCIe 4.0 x4/x2 (25110/22110/2580/2280)

CPU Power

2 x 8-pin ATX 12V

CPU Pump Header

1

CPU Socket

LGA1851

CPU Support

Intel® Core™ Ultra Processors

CUDIMM Support

Supported

Cache

L3 cache varies with CPU

Category

Specification Details

Chipset

Intel® Z890 Express Chipset

Chipset M.2 1

PCIe 4.0 x4/x2 (22110/2280)

Chipset M.2 2

SATA & PCIe 4.0 x4/x2 (22110/2280)

Clear CMOS Button

Onboard

DMI

DMI 2.7

Digital Audio

Optical S/PDIF Out

Dimensions

30.48 cm x 30.5 cm

DisplayPort Version

DisplayPort 2.1

ECC Memory Support

ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)

Ethernet Speeds

10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps

FORM FACTOR

E-ATX

Fan Fail Warning

Supported

Fan Speed Control

Supported

Fan Speed Detection

Supported

Form Factor

E-ATX

Front Panel Header

1

Front Thunderbolt

1 x Thunderbolt™ 4 (USB4® USB Type-C®)

Front USB-C

2 x USB 3.2 Gen 2x2 Type-C Headers

GIGABYTE Control Center

Supported

HDCP

HDCP 2.3

I/O Controller

iTE® I/O Controller Chip

Internal USB 2.0

4 Ports

Internal USB 3.2 Gen1

1 Header

Internal USB4

1 x USB4 Type-C

LAN

2 x Marvell® AQtion AQC113C 10GbE

LAN Software

LAN Bandwidth Management Software

MEMORY

DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s

Main Power

24-pin ATX

Maximum Memory

256 GB

Maximum Resolution

7680x4320@60 Hz

Memory Architecture

Dual Channel

Memory Slots

4 x DDR5 DIMM

Memory Support

DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s

NVMe RAID

RAID 0 / 1 / 5 / 10

Noise Detection

Supported

Noise Detection Header

1

Non-ECC Memory Support

Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16

OC Ignition Button

Yes

Operating System

Windows 11 64-bit (Version 24H2 or later)

Optical Audio

1 x S/PDIF Out

PCIe x16 Slot 1

PCIe 5.0 x16

PCIe x16 Slot 2

PCIe 5.0 x8

PCIe x16 Slot 3

PCIe 4.0 x4

PORTS

2 x Intel® Thunderbolt™ 5 (USB4® USB Type-C®)

PnP

PnP 1.0a

Power Button

Onboard

Q-Flash

Supported

Q-Flash Plus

Supported

Q-Flash Plus Button

Yes

RGB Header

Integrated RGB Gen2/RGB Extension Header

RJ-45 Ports

2

Rear Display Output

DisplayPort and Thunderbolt video output

Rear Thunderbolt

2 x Intel® Thunderbolt™ 5 (USB4® USB Type-C®)

Rear Thunderbolt Ports

2 x Thunderbolt™ 5 USB Type-C

Rear USB 3.2 Gen2

10 x USB 3.2 Gen2 Type-A

Reset Button

Onboard

SATA Ports

4 x SATA 6Gb/s

SATA RAID

RAID 0 / 1 / 5 / 10

SM BIOS

SM BIOS 2.7

SOCKET

LGA1851

Single DIMM Capacity

64 GB

Smart Backup

Supported

System Fan Extension

1

System Fan Header

1

System Pump Extension

1

Temperature Detection

Supported

Temperature Sensor Headers

2

Thunderbolt Monitor Resolution

5120x2880@60 Hz

Thunderbolt Speed

Up to 80Gbps

USB 3.2 Speed

Up to 20Gbps

USB4 Monitor Resolution

3840x2160@240 Hz

USB4 Speed

Up to 40Gbps

Voltage Detection

Supported

WIRELESS

Intel® Wi-Fi 7 BE200NGW

Water Flow Detection

Supported

WfM

WfM 2.0

Wi-Fi Antenna Connectors

2 (2T2R)

Wi-Fi Standards

802.11a/b/g/n/ac/ax/be

Wireless

Intel® Wi-Fi 7 BE200NGW

Wireless Bands

2.4GHz / 5GHz / 6GHz

XMP Support

Supported
