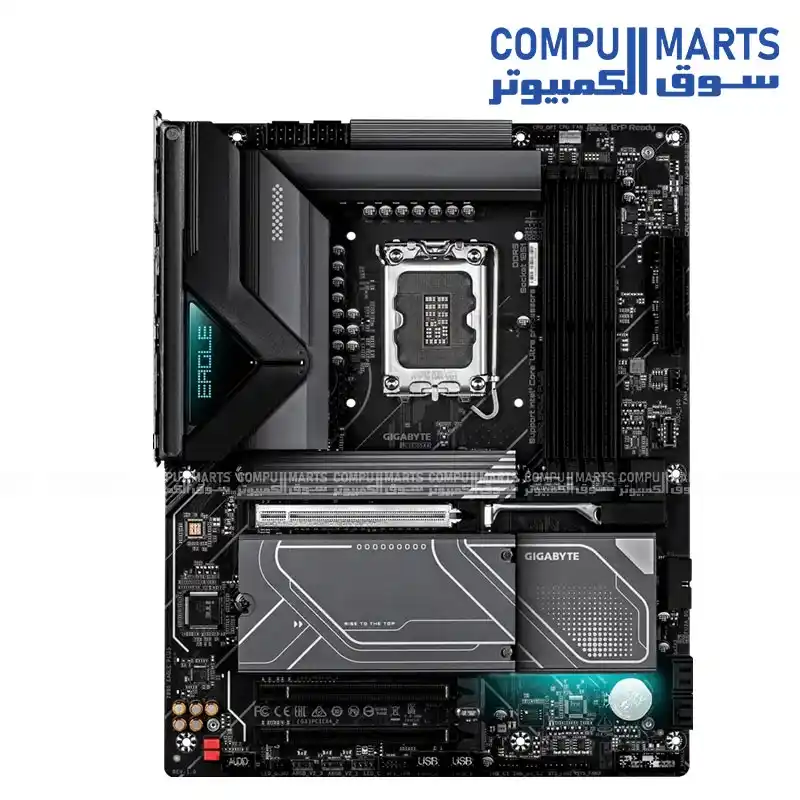

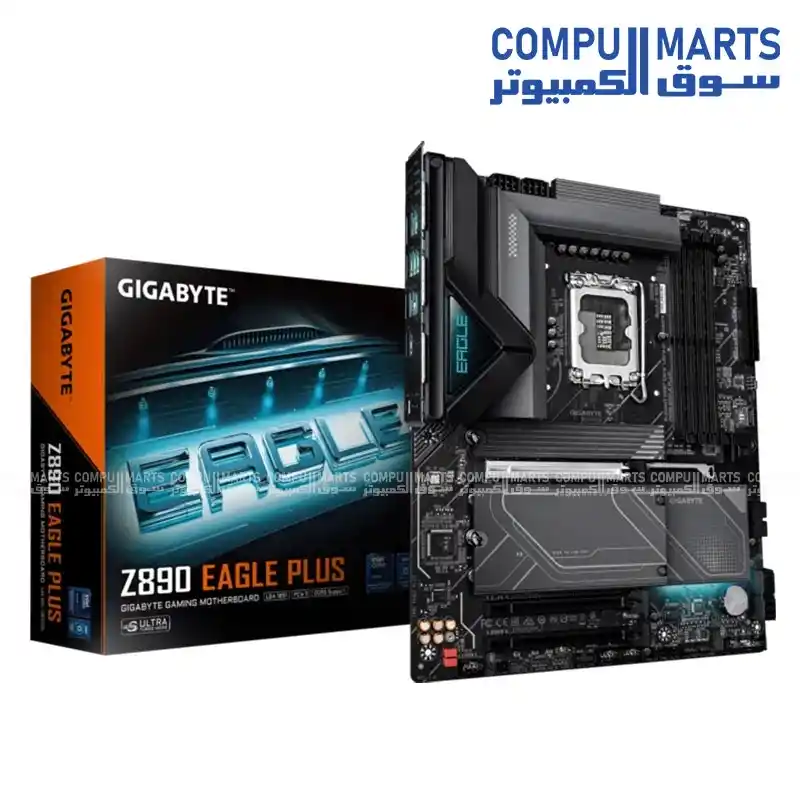

GIGABYTE Z890 EAGLE PLUS Motherboard, LGA1851, Intel Z890 Chipset, DDR5 9466+MT/s, PCIe 5.0, USB4, ATX

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } GIGABYTE Z890 EAGLE PLUS Motherboard is a motherboard featuring an LGA1851 socket, an Intel® Z890 Express Chipset, support for DDR5 9466+MT/s (OC), a PCIe 5.0 x16 expansion slot, and a USB4® USB Type-C® port, available in Egypt through Compumarts. Key specs SOCKET LGA1851 socket CHIPSET Intel® Z890 Express Chipset MEMORY Support up to DDR5 9466+MT/s (OC) INTERFACE 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PORTS 1 x USB4® USB Type-C® port FORM FACTOR ATX Form Factor; 30.5cm x 24.4cm GIGABYTE Z890 EAGLE PLUS Motherboard is a motherboard featuring an LGA1851 socket, an Intel® Z890 Express Chipset, support for DDR5 9466+MT/s (OC), a PCIe 5.0 x16 expansion slot, and a USB4® USB Type-C® port, available in Egypt through Compumarts. Key specs SOCKET LGA1851 socket CHIPSET Intel® Z890 Express Chipset MEMORY Support up to DDR5 9466+MT/s (OC) INTERFACE 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PORTS 1 x USB4® USB Type-C® port FORM FACTOR ATX Form Factor; 30.5cm x 24.4cm

تفاصيل إضافية

GIGABYTE Z890 EAGLE PLUS Motherboard is a motherboard featuring an LGA1851 socket, an Intel® Z890 Express Chipset, support for DDR5 9466+MT/s (OC), a PCIe 5.0 x16 expansion slot, and a USB4® USB Type-C® port, available in Egypt through Compumarts. Key specs SOCKET LGA1851 socket CHIPSET Intel® Z890 Express Chipset MEMORY Support up to DDR5 9466+MT/s (OC) INTERFACE 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PORTS 1 x USB4® USB Type-C® port FORM FACTOR ATX Form Factor; 30.5cm x 24.4cm

المواصفات الفنية

ARGB Headers

3 x Addressable RGB Gen2

Audio

High Definition Audio

Audio Channels

2/4/5.1/7.1-channel

Audio Codec

Realtek® ALC1220 CODEC

Audio Jacks

2

BIOS

1 x 512 Mbit flash

BIOS Type

AMI UEFI BIOS

Bundled Software

Norton® Internet Security (OEM version)

CHIPSET

Intel® Z890 Express Chipset

CPU Fan Header

1

CPU Power

2 x 8-pin ATX 12V connectors

CPU Pump Header

1

CPU Socket

LGA1851 socket

CPU Support

Intel® Core™ Ultra Processors

Category

Specification Details

Chipset

Intel® Z890 Express Chipset

Clear CMOS Button

1

Clear CMOS Jumper

1

Digital Audio

Support for S/PDIF Out

Dimensions

30.5 cm x 24.4 cm

DisplayPort

1 x DisplayPort supporting up to 3840x2160@144 Hz

DisplayPort Version

DisplayPort 2.1

FORM FACTOR

ATX Form Factor; 30.5cm x 24.4cm

Features

Smart Backup

Form Factor

ATX

Front Audio Header

1

Front Panel Header

1

Hardware Monitoring

Fan speed control

I/O Controller

iTE® I/O Controller Chip

INTERFACE

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

Internal USB-C

1 x USB Type-C® header (USB 3.2 Gen 2)

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

M.2 (CPU 1)

1 x M.2 Socket 3 (25110/22110/2580/2280) PCIe 5.0 x4/x2 SSD

M.2 (CPU 2)

1 x M.2 Socket 3 (22110/2280) PCIe 4.0 x4/x2 SSD

M.2 (Chipset 1)

1 x M.2 Socket 3 (22110/2280) PCIe 4.0 x4/x2 SSD

M.2 (Chipset 2)

1 x M.2 Socket 3 (22110/2280) SATA & PCIe 4.0 x4/x2 SSD

MEMORY

Support up to DDR5 9466+MT/s (OC)

Main Power

1 x 24-pin ATX connector

Maximum Memory Capacity

256 GB

Memory Architecture

Dual Channel

Memory Profile

Intel® Extreme Memory Profile (XMP)

Memory Slots

4 x DDR5 DIMM slots

Memory Support

Up to DDR5 9466+MT/s (OC)

Memory Type

Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support

Operating System

Windows 11 64-bit

Optical Audio

1 x Optical S/PDIF Out

PCIe x16 (CPU)

1 x PCI Express x16 slot, PCIe 5.0 x16

PCIe x16 (Chipset)

2 x PCI Express x16 slots, PCIe 4.0 x4

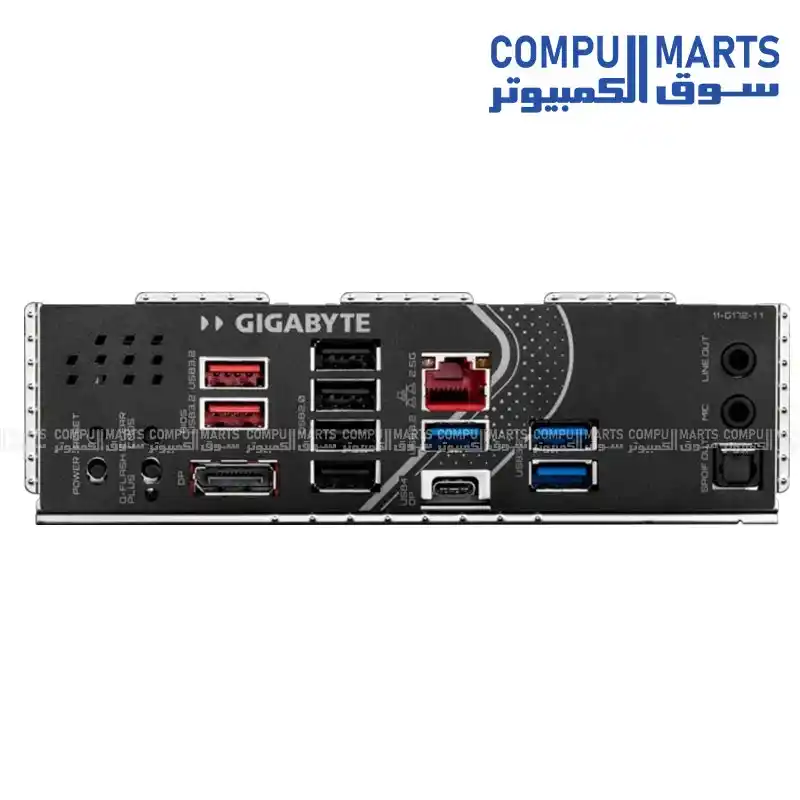

PORTS

1 x USB4® USB Type-C® port

Q-Flash Plus Button

1

RAID Support

RAID 0, RAID 1, RAID 5, RAID 10 (NVMe SSD)

RAID Support (SATA)

RAID 0, RAID 1, RAID 5, RAID 10 (SATA)

RGB Header

1

RJ-45

1

Rear DisplayPort

1

Rear Power Button

1

Rear Reset Button

1

Rear USB 2.0

4 Ports

Rear USB 3.2 Gen1

3 Ports

Rear USB 3.2 Gen2

2 x Type-A

Rear USB4

1 x USB4® Type-C® (DisplayPort)

Reset Jumper

1

SATA

4 x SATA 6Gb/s connectors

SOCKET

LGA1851 socket

System Fan Headers

3

System Pump Header

1

TPM Header

1

Thunderbolt Header

2 x Thunderbolt™ add-in card connectors

USB 2.0 Headers

2

USB 2.0/1.1

8 Ports

USB 3.2 Gen1

5 Ports

USB 3.2 Gen1 Header

1

USB 3.2 Gen2 Type-A

2 x Rear Ports

USB4 Display Output

1 x USB4® USB Type-C® port supporting DisplayPort video output up to 3840x2160@144 Hz
