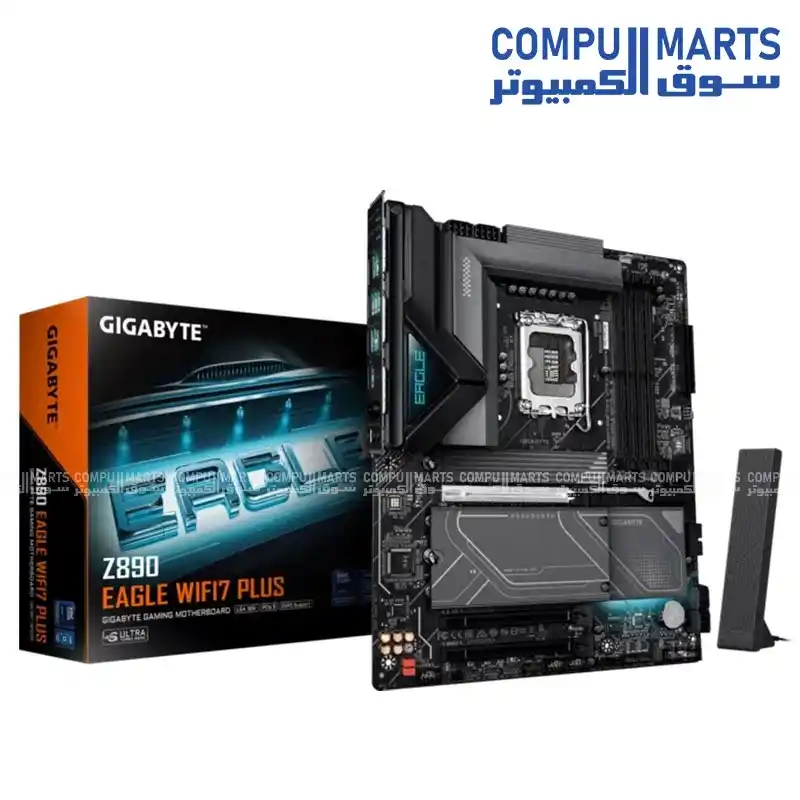

GIGABYTE Z890 EAGLE WIFI7 DDR5 LGA1851 ATX Motherboard

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } GIGABYTE Z890 EAGLE WIFI7 PLUS Motherboard is a motherboard featuring an Intel® Z890 Express Chipset, an LGA1851 socket for Intel® Core™ Ultra Processors, support for DDR5 9466+MT/s (OC), integrated Intel® Wi-Fi 7 BE202 (BE200NGW M), and a USB4® USB Type-C® port, available in Egypt through Compumarts. Key specs CHIPSET Intel® Z890 Express Chipset SOCKET LGA1851 MEMORY DDR5 9466+MT/s (OC) WIRELESS Intel® Wi-Fi 7 BE202 (BE200NGW M) PORTS 1 x USB4® USB Type-C® port FORM FACTOR ATX GIGABYTE Z890 EAGLE WIFI7 PLUS Motherboard is a motherboard featuring an Intel® Z890 Express Chipset, an LGA1851 socket for Intel® Core™ Ultra Processors, support for DDR5 9466+MT/s (OC), integrated Intel® Wi-Fi 7 BE202 (BE200NGW M), and a USB4® USB Type-C® port, available in Egypt through Compumarts. Key specs CHIPSET Intel® Z890 Express Chipset SOCKET LGA1851 MEMORY DDR5 9466+MT/s (OC) WIRELESS Intel® Wi-Fi 7 BE202 (BE200NGW M) PORTS 1 x USB4® USB Type-C® port FORM FACTOR ATX

تفاصيل إضافية

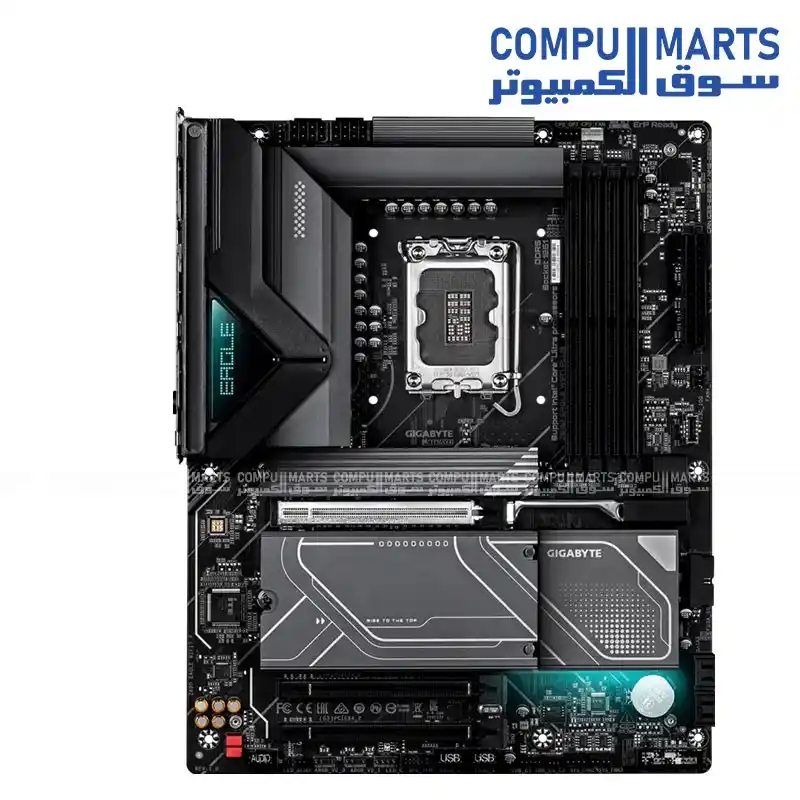

GIGABYTE Z890 EAGLE WIFI7 PLUS Motherboard is a motherboard featuring an Intel® Z890 Express Chipset, an LGA1851 socket for Intel® Core™ Ultra Processors, support for DDR5 9466+MT/s (OC), integrated Intel® Wi-Fi 7 BE202 (BE200NGW M), and a USB4® USB Type-C® port, available in Egypt through Compumarts. Key specs CHIPSET Intel® Z890 Express Chipset SOCKET LGA1851 MEMORY DDR5 9466+MT/s (OC) WIRELESS Intel® Wi-Fi 7 BE202 (BE200NGW M) PORTS 1 x USB4® USB Type-C® port FORM FACTOR ATX

المواصفات الفنية

ARGB Headers

3 x Addressable RGB Gen2

Antenna Connectors

2 (2T2R)

Audio Codec

Realtek® ALC1220 CODEC

Audio Jacks

2

Audio Support

High Definition Audio 2/4/5.1/7.1-channel

BIOS

1 x 512 Mbit Flash

BIOS Type

AMI UEFI BIOS

Bluetooth

Bluetooth 5.4

Bundled Software

Norton® Internet Security (OEM Version)

CHIPSET

Intel® Z890 Express Chipset

CPU Fan Headers

1

CPU Power

2 x 8-pin ATX 12V

CPU Socket

LGA1851

CPU Support

Intel® Core™ Ultra Processors

Category

Specification Details

Chipset

Intel® Z890 Express Chipset

Clear CMOS Button

1

Clear CMOS Jumper

1

Dimensions

30.5 cm x 24.4 cm

DisplayPort

1 x DisplayPort, up to 3840x2160@144 Hz

FORM FACTOR

ATX

Form Factor

ATX

Front Audio Header

1

Front Panel Header

1

Hardware Monitoring

Voltage, Temperature, Fan Speed, Water Cooling Flow, Fan Warning, Fan Control

I/O Controller

iTE® I/O Controller Chip

Internal USB 2.0

2 Headers

Internal USB 3.2 Gen1

1 Header

Internal USB-C

1 x USB 3.2 Gen2 Type-C Header

L3 Cache

Varies with CPU

LAN

Realtek® 2.5GbE LAN

M.2 (CPU)

1 x PCIe 5.0 x4/x2, 1 x PCIe 4.0 x4/x2

M.2 (Chipset)

1 x PCIe 4.0 x4/x2, 1 x SATA & PCIe 4.0 x4/x2

MEMORY

DDR5 9466+MT/s (OC)

Maximum Memory

256 GB

Memory Channel

Dual Channel

Memory Slots

4 x DDR5 DIMM Slots

Memory Support

DDR5 9466+MT/s (OC)

Memory Type

Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

Onboard Graphics

Intel® HD Graphics support

Operating System

Windows 11 64-bit

PCIe x16 (CPU)

1 x PCI Express 5.0 x16

PCIe x16 (Chipset)

2 x PCI Express 4.0 x4

PORTS

1 x USB4® USB Type-C® port

Power Button

1

Power Connector

1 x 24-pin ATX

Pump Header

1 CPU Pump Header

Q-Flash Plus Button

1

RAID

NVMe RAID 0/1/5/10, SATA RAID 0/1/5/10

RGB Header

1

RJ-45 Port

1

Rear USB 2.0

4 x USB 2.0/1.1

Rear USB 3.2 Gen1

3 x USB 3.2 Gen1

Rear USB 3.2 Gen2

2 x Type-A

Rear USB4

1 x USB4® Type-C

Reset Button

1

Reset Jumper

1

S/PDIF

Optical S/PDIF Out

SATA

4 x SATA 6Gb/s

SOCKET

LGA1851

System Fan Headers

3

System Pump Header

1

TPM Header

1

Thunderbolt Headers

2

USB4 Display Output

1 x USB4® USB Type-C® with DisplayPort, up to 3840x2160@144 Hz

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

WIRELESS

Intel® Wi-Fi 7 BE202 (BE200NGW M)

Wi-Fi Standards

802.11a/b/g/n/ac/ax/be

Wireless

Intel® Wi-Fi 7 BE202 (BE200NGW M)

Wireless Bands

2.4 GHz / 5 GHz / 6 GHz

XMP Support

Intel® Extreme Memory Profile (XMP)
