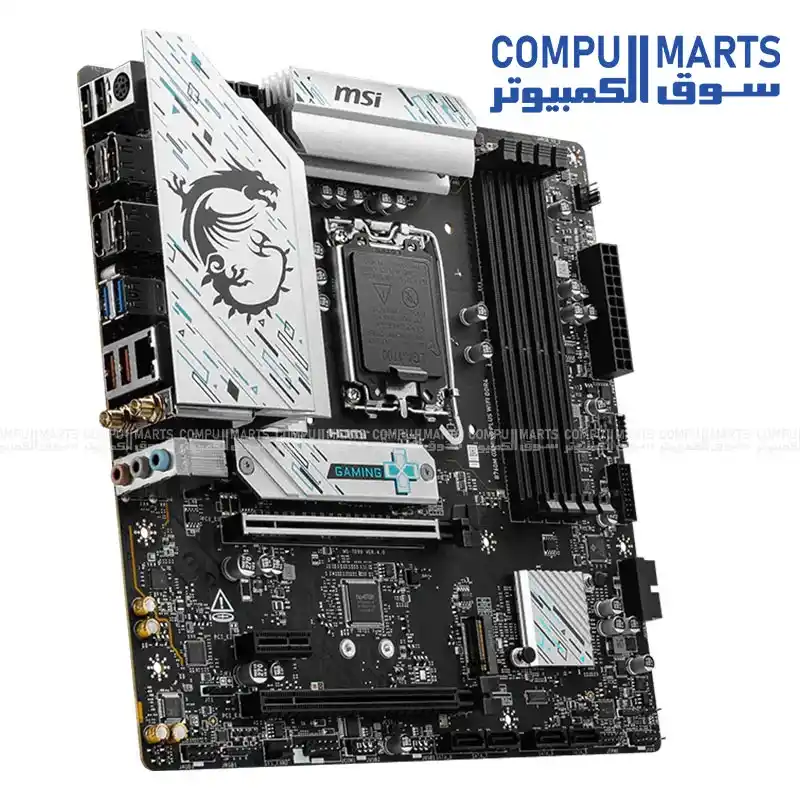

MSI B760M GAMING PLUS WIFI DDR4 Intel B760 LGA1700 mATX Motherboard with Wi-Fi 6E Bluetooth 5.3 PCIe 4.0 Dual M.2 2.5G LAN DDR4 5333MHz OC Support

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } MSI B760M GAMING PLUS WIFI DDR4 motherboard with INTEL B760 is available in Egypt from Compumarts. Key specs CHIPSET INTEL B760 CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB STORAGE 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G LAN Realtek® RTL8125BG 2.5G LAN WIRELESS Intel® Wi-Fi 6E BLUETOOTH Supports Bluetooth® 5.3, FIPS, FISMA OS Support for Windows® 11 64-bit, Windows® 10 64-bit MSI B760M GAMING PLUS WIFI DDR4 motherboard with INTEL B760 is available in Egypt from Compumarts. Key specs CHIPSET INTEL B760 CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB STORAGE 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G LAN Realtek® RTL8125BG 2.5G LAN WIRELESS Intel® Wi-Fi 6E BLUETOOTH Supports Bluetooth® 5.3, FIPS, FISMA OS Support for Windows® 11 64-bit, Windows® 10 64-bit

تفاصيل إضافية

MSI B760M GAMING PLUS WIFI DDR4 motherboard with INTEL B760 is available in Egypt from Compumarts. Key specs CHIPSET INTEL B760 CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB STORAGE 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G LAN Realtek® RTL8125BG 2.5G LAN WIRELESS Intel® Wi-Fi 6E BLUETOOTH Supports Bluetooth® 5.3, FIPS, FISMA OS Support for Windows® 11 64-bit, Windows® 10 64-bit

المواصفات الفنية

Audio

Realtek® ALC897 Codec; 7.1-Channel High Definition Audio

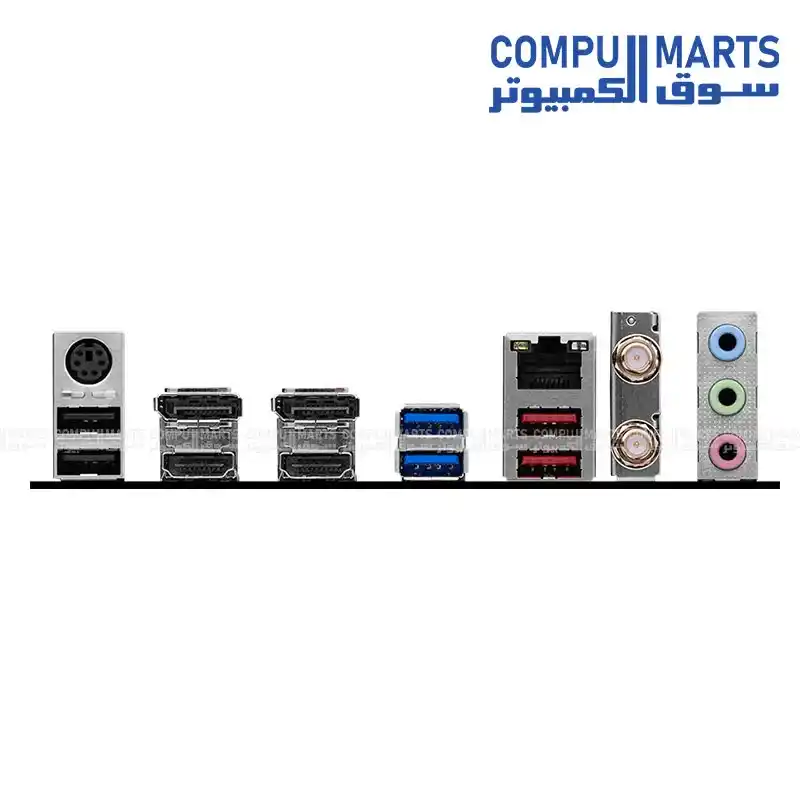

BACK PANEL PORTS

1. Keyboard / Mouse; 2. DisplayPort; 3. USB 5Gbps Type A ports; 4. 2.5G LAN; 5. Wi-Fi / Bluetooth; 6. USB 2.0; 7. HDMI™; 8. USB 10 Gbps Type A ports; 9. Audio Connectors

BLUETOOTH

Supports Bluetooth® 5.3, FIPS, FISMA

CHIPSET

INTEL B760

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

Category

Specification Details

Chipset

INTEL B760

Internal IO

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports

LAN

Realtek® RTL8125BG 2.5G LAN

LED FEATURE

4x EZ Debug LED

MEMORY

4x DDR4, Maximum Memory Capacity 128GB

Memory

4x DDR4, Maximum Memory Capacity 128GB; Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

OS

Support for Windows® 11 64-bit, Windows® 10 64-bit

Onboard Graphics

2x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 2x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

STORAGE

2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G

Slot

2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage

2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G; *SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

USB

2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 2x USB 10Gbps Type A (Rear)

WIRELESS

Intel® Wi-Fi 6E

WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA; *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; **Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
