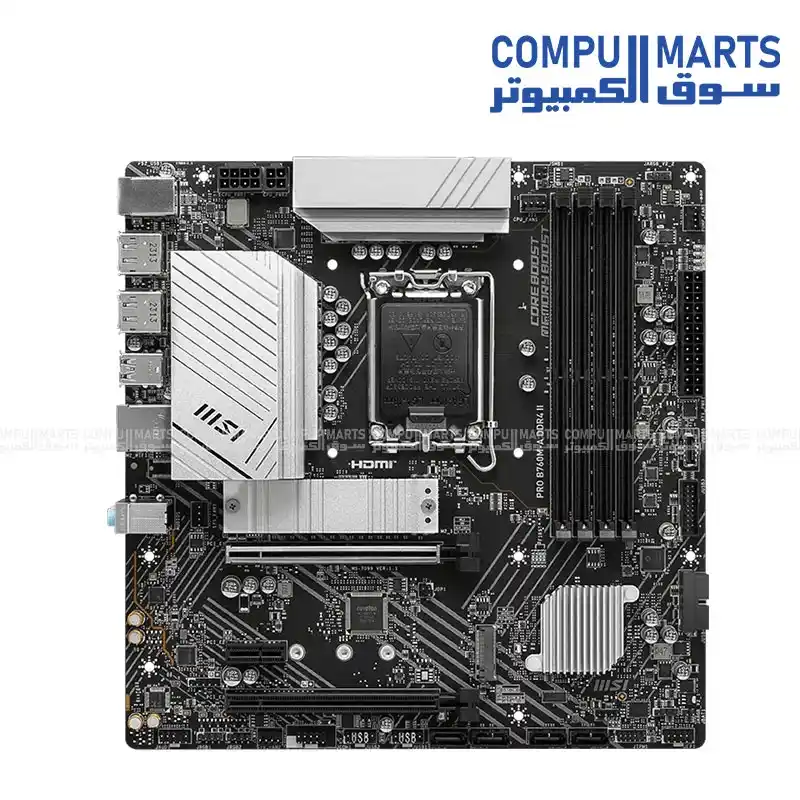

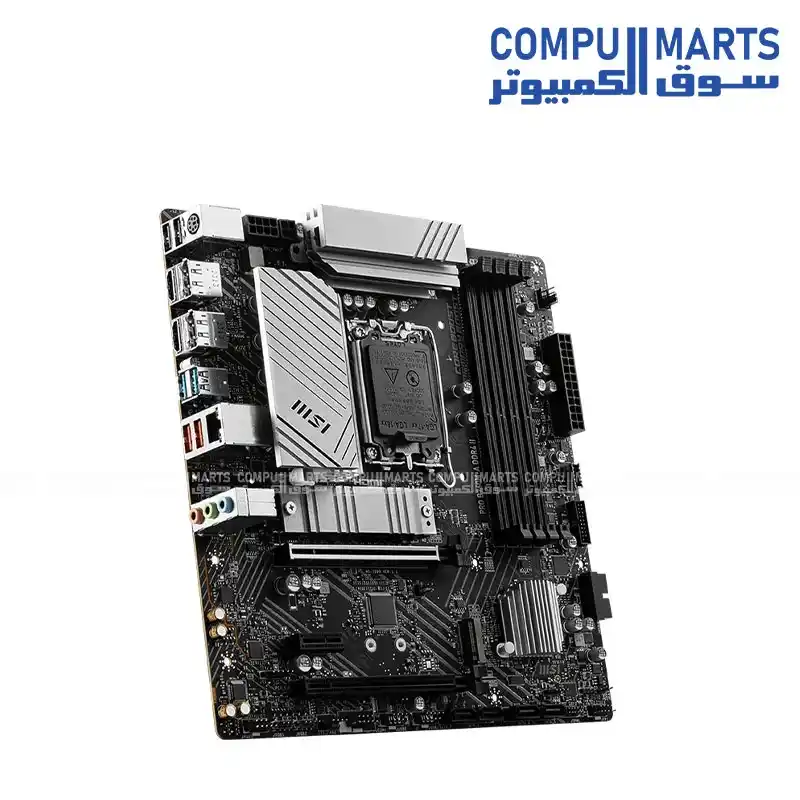

MSI PRO B760M-A DDR4 II M-ATX LGA1700 Gaming Motherboard

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } The MSI PRO B760M-A DDR4 II gaming motherboard features the INTEL B760 chipset, supports 4x DDR4, Maximum Memory Capacity 128GB, and provides PCI_E1 Gen PCIe 4.0 up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 up to x4 (From Chipset) for compatible systems in Egypt through Compumarts. Key specs CHIPSET INTEL B760 SOCKET Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB STORAGE 2x M.2 (M.2_1 PCIe 4.0 x4 from CPU; M.2_2 PCIe 4.0 x4 / SATA from Chipset), 4x SATA 6G *SATA8 unavailable when installing M.2 SATA SSD in M2_2 slot INTERFACE 2x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A CONNECTIVITY Realtek RTL8125BG 2.5G LAN The MSI PRO B760M-A DDR4 II gaming motherboard features the INTEL B760 chipset, supports 4x DDR4, Maximum Memory Capacity 128GB, and provides PCI_E1 Gen PCIe 4.0 up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 up to x4 (From Chipset) for compatible systems in Egypt through Compumarts. Key specs CHIPSET INTEL B760 SOCKET Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB STORAGE 2x M.2 (M.2_1 PCIe 4.0 x4 from CPU; M.2_2 PCIe 4.0 x4 / SATA from Chipset), 4x SATA 6G *SATA8 unavailable when installing M.2 SATA SSD in M2_2 slot INTERFACE 2x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A CONNECTIVITY Realtek RTL8125BG 2.5G LAN

تفاصيل إضافية

The MSI PRO B760M-A DDR4 II gaming motherboard features the INTEL B760 chipset, supports 4x DDR4, Maximum Memory Capacity 128GB, and provides PCI_E1 Gen PCIe 4.0 up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 up to x4 (From Chipset) for compatible systems in Egypt through Compumarts. Key specs CHIPSET INTEL B760 SOCKET Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB STORAGE 2x M.2 (M.2_1 PCIe 4.0 x4 from CPU; M.2_2 PCIe 4.0 x4 / SATA from Chipset), 4x SATA 6G *SATA8 unavailable when installing M.2 SATA SSD in M2_2 slot INTERFACE 2x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A CONNECTIVITY Realtek RTL8125BG 2.5G LAN

المواصفات الفنية

Audio

Realtek ALC897 Codec, 7.1-Channel High Definition Audio

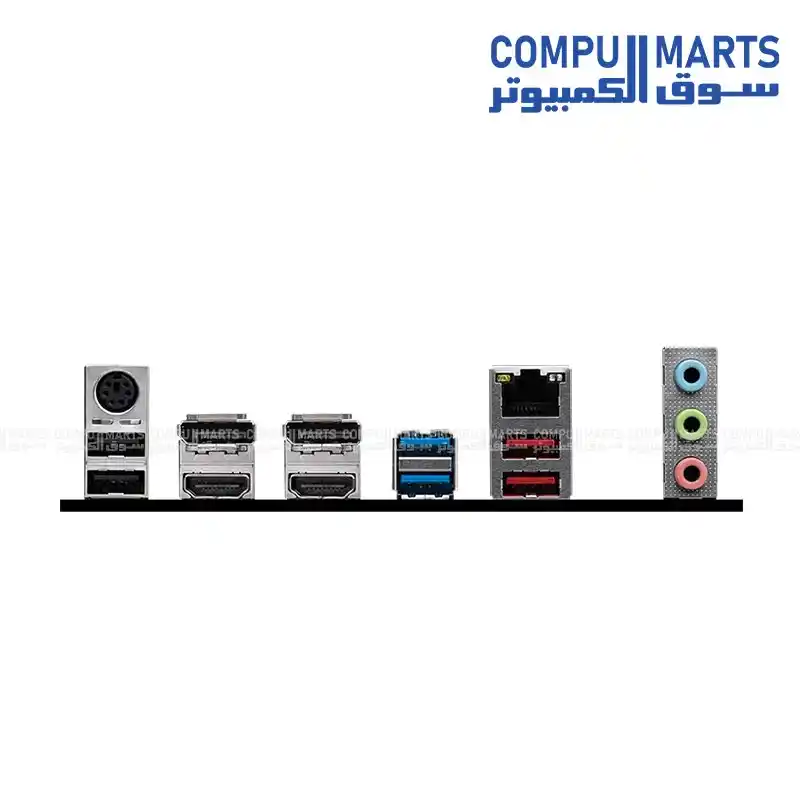

BACK PANEL PORTS

Keyboard / Mouse, DisplayPort, USB 3.2 Gen 1 5Gbps (Type-A), 2.5G LAN, Audio Connectors, USB 2.0, HDMI™, USB 3.2 Gen 2 10Gbps (Type-A)

CHIPSET

INTEL B760

CONNECTIVITY

Realtek RTL8125BG 2.5G LAN

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

Category

Specification Details

Chipset

INTEL B760

Expansion Details

PCI_E1 Gen PCIe 4.0 up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 up to x4 (From Chipset)

INTERFACE

2x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A

Internal IO

1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 2x JARGB_V2, 2x JRGB, 1x TPM header, 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports

LAN

Realtek RTL8125BG 2.5G LAN

LED FEATURE

4x EZ Debug LED

MEMORY

4x DDR4, Maximum Memory Capacity 128GB

Max. overclocking frequency

1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz

Memory

4x DDR4, Maximum Memory Capacity 128GB

Memory Features

Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP)

Memory Support

5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

Onboard Graphics

2x HDMI™ 2.1 (4K 60Hz), 2x DisplayPort 1.4 (4K 60Hz) *Available only on processors featuring integrated graphics.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

SOCKET

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

STORAGE

2x M.2 (M.2_1 PCIe 4.0 x4 from CPU; M.2_2 PCIe 4.0 x4 / SATA from Chipset), 4x SATA 6G *SATA8 unavailable when installing M.2 SATA SSD in M2_2 slot

Slot

2x PCI-E x16 slot, 1x PCI-E x1 slot

Storage

2x M.2 (M.2_1 PCIe 4.0 x4 from CPU; M.2_2 PCIe 4.0 x4 / SATA from Chipset), 4x SATA 6G *SATA8 unavailable when installing M.2 SATA SSD in M2_2 slot

USB (Front)

4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 5Gbps Type C

USB (Rear)

2x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A
