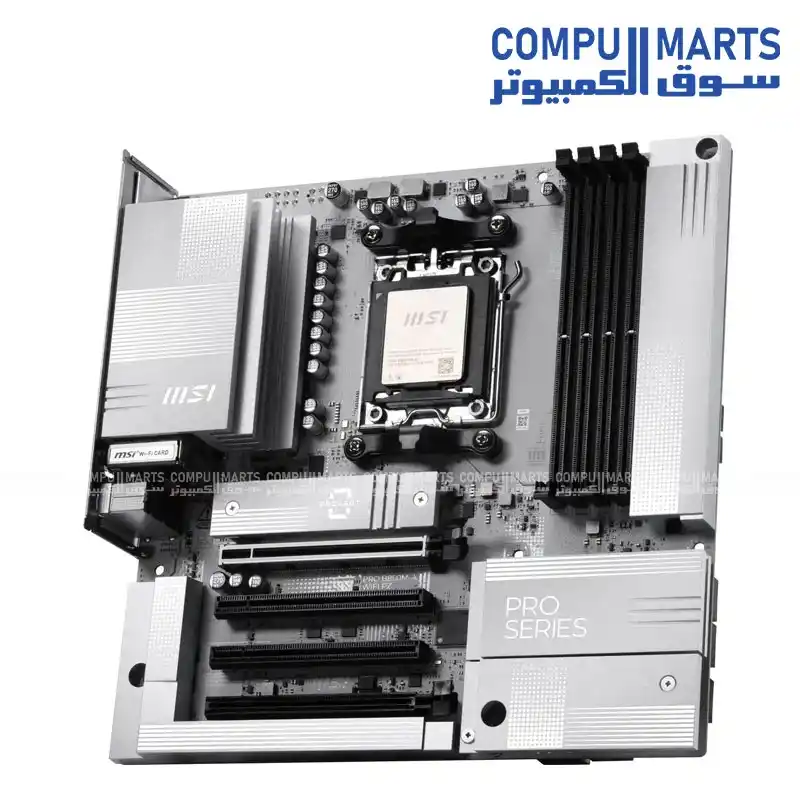

MSI PRO B850M-A WIFI PZ DDR5 mATX Gaming Motherboard

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } The MSI PRO B850M-A WIFI PZ gaming motherboard combines AMD B850, AM5 CPU support, and 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. with Wi-Fi 7 connectivity for gaming and AI systems in Egypt through Compumarts. Key specs CHIPSET AMD B850 SOCKET AM5 MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s STORAGE 4 x SATA 6Gb/sM.22x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices. WIRELESS Wi-Fi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be FORM FACTOR Micro ATX The MSI PRO B850M-A WIFI PZ gaming motherboard combines AMD B850, AM5 CPU support, and 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. with Wi-Fi 7 connectivity for gaming and AI systems in Egypt through Compumarts. Key specs CHIPSET AMD B850 SOCKET AM5 MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s STORAGE 4 x SATA 6Gb/sM.22x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices. WIRELESS Wi-Fi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be FORM FACTOR Micro ATX

تفاصيل إضافية

The MSI PRO B850M-A WIFI PZ gaming motherboard combines AMD B850, AM5 CPU support, and 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. with Wi-Fi 7 connectivity for gaming and AI systems in Egypt through Compumarts. Key specs CHIPSET AMD B850 SOCKET AM5 MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s STORAGE 4 x SATA 6Gb/sM.22x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices. WIRELESS Wi-Fi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be FORM FACTOR Micro ATX

المواصفات الفنية

Audio Channels

7.1-Channel High Definition Audio

Audio Chipset

Realtek ALC897

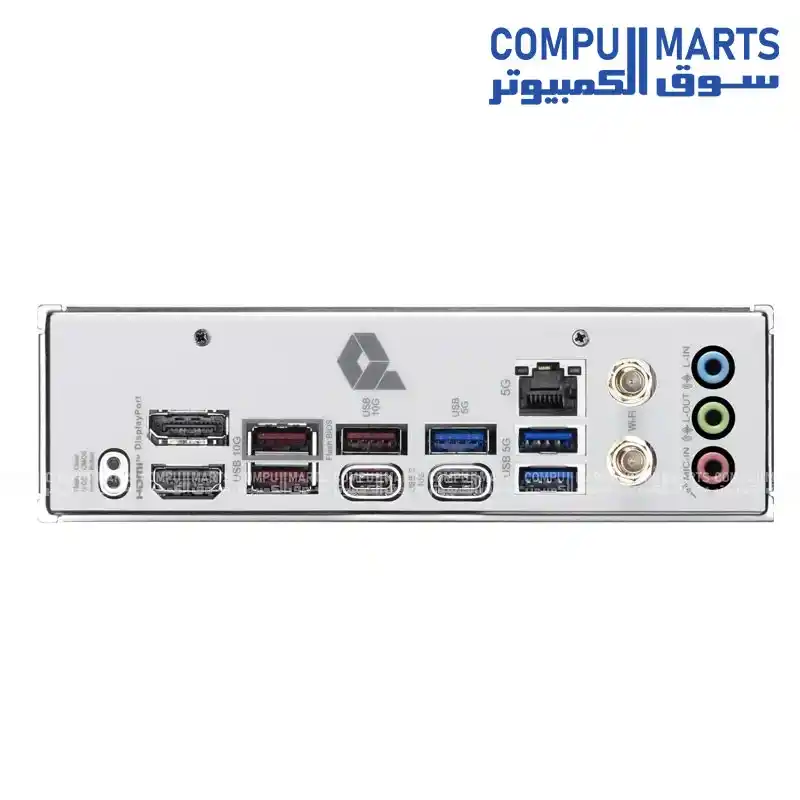

Back I/O Ports

1 x Clear CMOS Button / 1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 2 x Antenna Bracket / 2 x USB 3.1 Gen 1 Type-A / 2 x USB 3.1 Gen 2 Type-A / 2 x USB 3.2 Gen 2 Type-C / 3 x Audio Jacks

Bluetooth

Supports Bluetooth® 5.4**, MLO, 4KQAM

Brand

MSI

CHIPSET

AMD B850

CPU Socket Type

AM5

CPU Type

Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Category

Specification Details

Channel Supported

Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPOTM, Supports Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM, Clock Driver bypass mode only*

Chipset

AMD B850

Dimensions (W x L)

243.84mmx243.84mm Windows 11 Support for Windows® 11 64-bit

FORM FACTOR

Micro ATX

Features

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. 4x EZ Debug LED, 1x EZ Memory Detection LED. Supports RAID 0 and RAID 1 for M.2 NVMe storage devices, Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices. Back-Connect Design: The PRO B850M-A WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system. DIRECT 8+2+1 POWER DESIGN: Unleash and sustain the maximum performance with a VRM design built with a total of 8+2+1 digital power phases. With 8+4-pin power connectors, PRO B850M-A WIFI PZ is ready for the challenge of heavy-loading tasks. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK: MSI's premium network solution provides incredible data transfer speed for demanding users.

Form Factor

Micro ATX

LAN Chipset

Realtek® 8126 5G LAN

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s

Max LAN Speed

5Gbps

Maximum Memory Supported

256GB

Memory Feature

8200+ MT/s (OC) PCI Express 5.0 x16 4x PCI-E x16 slot. PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset). PCI_E1 slot: Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) PCI Express x4 1 x PCIe 4.0 x4 slot PCI Express x1 2 x PCIe 3.0 x1 slots

Memory Standard

4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s

Model

PRO B850M-A WIFI PZ

Number of Memory Slots

4x288pin (DDR5)

Onboard USB

4x USB 2.0 (Front), 2x USB 5Gbps Type A (Front), 1x USB 10Gbps Type C (Front)

Other Connectors

1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0)

SOCKET

AM5

STORAGE

4 x SATA 6Gb/sM.22x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices.

Serial ATA (SATA)

4 x SATA 6Gb/s M.2 2x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices. 4x SATA 6G. M2_1 slot: Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors). M2_2 slot: Supports up to PCIe 4.0 x4, Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

WIRELESS

Wi-Fi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Wireless LAN

Wi-Fi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
