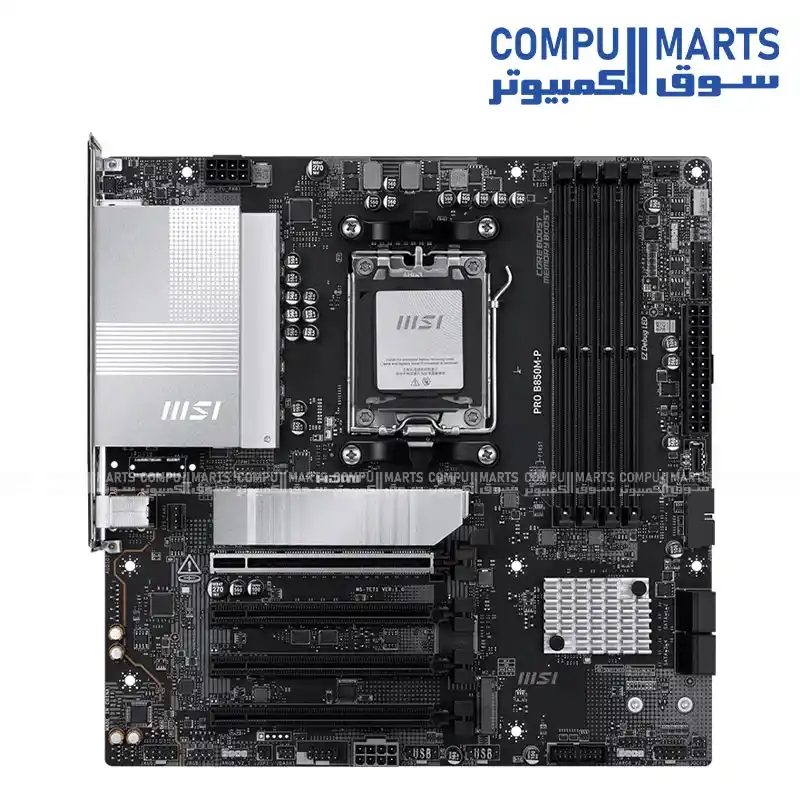

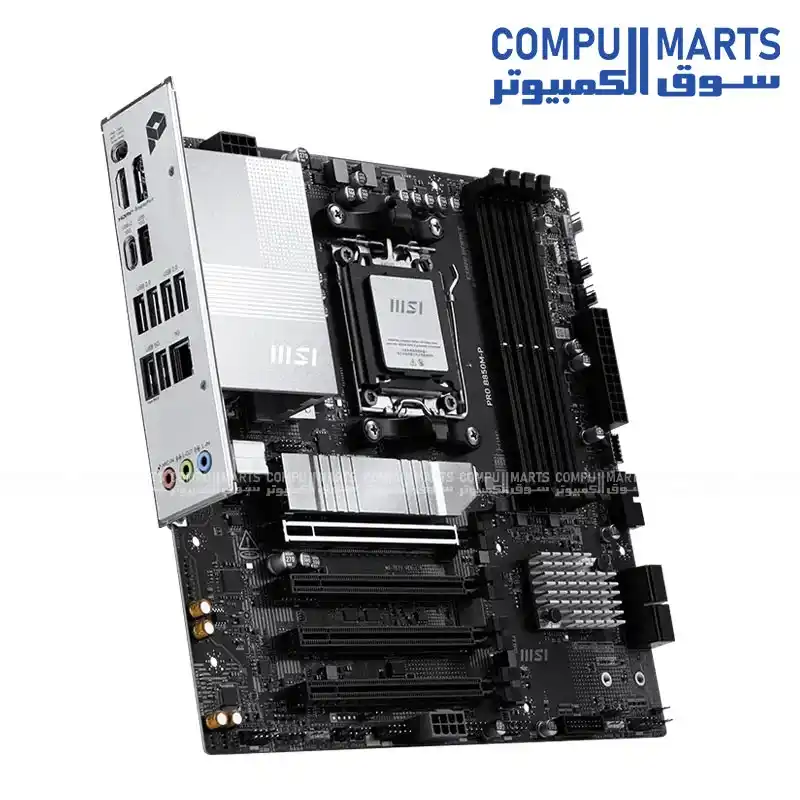

MSI PRO B850M-P AM5 DDR5 mATX Gaming Motherboard

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } The MSI PRO B850M-P AM5 DDR5 mATX Gaming Motherboard features the AMD B850 chipset and supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors with Socket AM5. It supports 4x DDR5 UDIMM, Maximum Memory Capacity 256GB with DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, dual-channel mode, memory overclocking and AMD EXPOTM. Storage includes 3x M.2 slots with PCIe 5.0 x4, PCIe 4.0 x4 and PCIe 4.0 x2 support, plus 4x SATA 6G. The motherboard provides PCIe expansion with a PCIe 5.0 x16 primary slot, HDMI™ 2.1 and DisplayPort 1.4 outputs, Realtek® 8126VB 5G LAN, and Realtek® ALC897 7.1-channel High Definition Audio. USB connectivity includes USB 2.0, USB 5Gbps Type A and USB 10Gbps Type A and Type C ports. The MSI PRO B850M-P is available for motherboard buyers in Egypt through Compumarts. Key specs CHIPSET AMD B850 CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s. Supports AMD POR Speed and JEDEC Speed. Supports Memory Overclocking and AMD EXPOTM. Supports Dual-Channel mode. Supports Non-ECC, Un-buffered memory. Supports CUDIMM, Clock Driver bypass mode only*. * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. ONBOARD GRAPHICS 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz*. 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*. *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SLOT 4x PCI-E x16 slot. PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E1 slot: Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) AUDIO Realtek® ALC897. 7.1-Channel High Definition Audio STORAGE 3x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices. M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices. 4x SATA 6G. M2_1 slot: Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors). M2_2 slot: Supports up to PCIe 4.0 x4, Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors). *Please refer to the manual for M.2 SSD heatsink restrictions. RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices. Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices. *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. USB 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front) LAN Realtek® 8126VB 5G LAN INTERNAL IO 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports LED FEATURE 4x EZ Debug LED, 1x EZ Memory Detection LED BACK PANEL PORTS Clear CMOS Button, DisplayPort, USB 10Gbps Type-A, USB 2.0, 5G LAN, Audio connectors, Flash BIOS Button, HDMI™, USB 10Gbps Type-C, USB 5Gbps Type-A The MSI PRO B850M-P AM5 DDR5 mATX Gaming Motherboard features the AMD B850 chipset and supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors with Socket AM5. It supports 4x DDR5 UDIMM, Maximum Memory Capacity 256GB with DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, dual-channel mode, memory overclocking and AMD EXPOTM. Storage includes 3x M.2 slots with PCIe 5.0 x4, PCIe 4.0 x4 and PCIe 4.0 x2 support, plus 4x SATA 6G. The motherboard provides PCIe expansion with a PCIe 5.0 x16 primary slot, HDMI™ 2.1 and DisplayPort 1.4 outputs, Realtek® 8126VB 5G LAN, and Realtek® ALC897 7.1-channel High Definition Audio. USB connectivity includes USB 2.0, USB 5Gbps Type A and USB 10Gbps Type A and Type C ports. The MSI PRO B850M-P is available for motherboard buyers in Egypt through Compumarts. Key specs CHIPSET AMD B850 CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s. Supports AMD POR Speed and JEDEC Speed. Supports Memory Overclocking and AMD EXPOTM. Supports Dual-Channel mode. Supports Non-ECC, Un-buffered memory. Supports CUDIMM, Clock Driver bypass mode only*. * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. ONBOARD GRAPHICS 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz*. 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*. *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SLOT 4x PCI-E x16 slot. PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E1 slot: Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) AUDIO Realtek® ALC897. 7.1-Channel High Definition Audio STORAGE 3x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices. M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices. 4x SATA 6G. M2_1 slot: Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors). M2_2 slot: Supports up to PCIe 4.0 x4, Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors). *Please refer to the manual for M.2 SSD heatsink restrictions. RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices. Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices. *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. USB 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front) LAN Realtek® 8126VB 5G LAN INTERNAL IO 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports LED FEATURE 4x EZ Debug LED, 1x EZ Memory Detection LED BACK PANEL PORTS Clear CMOS Button, DisplayPort, USB 10Gbps Type-A, USB 2.0, 5G LAN, Audio connectors, Flash BIOS Button, HDMI™, USB 10Gbps Type-C, USB 5Gbps Type-A

تفاصيل إضافية

The MSI PRO B850M-P AM5 DDR5 mATX Gaming Motherboard features the AMD B850 chipset and supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors with Socket AM5. It supports 4x DDR5 UDIMM, Maximum Memory Capacity 256GB with DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, dual-channel mode, memory overclocking and AMD EXPOTM. Storage includes 3x M.2 slots with PCIe 5.0 x4, PCIe 4.0 x4 and PCIe 4.0 x2 support, plus 4x SATA 6G. The motherboard provides PCIe expansion with a PCIe 5.0 x16 primary slot, HDMI™ 2.1 and DisplayPort 1.4 outputs, Realtek® 8126VB 5G LAN, and Realtek® ALC897 7.1-channel High Definition Audio. USB connectivity includes USB 2.0, USB 5Gbps Type A and USB 10Gbps Type A and Type C ports. The MSI PRO B850M-P is available for motherboard buyers in Egypt through Compumarts. Key specs CHIPSET AMD B850 CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s. Supports AMD POR Speed and JEDEC Speed. Supports Memory Overclocking and AMD EXPOTM. Supports Dual-Channel mode. Supports Non-ECC, Un-buffered memory. Supports CUDIMM, Clock Driver bypass mode only*. * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. ONBOARD GRAPHICS 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz*. 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*. *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SLOT 4x PCI-E x16 slot. PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E1 slot: Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) AUDIO Realtek® ALC897. 7.1-Channel High Definition Audio STORAGE 3x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices. M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices. 4x SATA 6G. M2_1 slot: Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors). M2_2 slot: Supports up to PCIe 4.0 x4, Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors). *Please refer to the manual for M.2 SSD heatsink restrictions. RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices. Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices. *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. USB 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front) LAN Realtek® 8126VB 5G LAN INTERNAL IO 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports LED FEATURE 4x EZ Debug LED, 1x EZ Memory Detection LED BACK PANEL PORTS Clear CMOS Button, DisplayPort, USB 10Gbps Type-A, USB 2.0, 5G LAN, Audio connectors, Flash BIOS Button, HDMI™, USB 10Gbps Type-C, USB 5Gbps Type-A

المواصفات الفنية

AUDIO

Realtek® ALC897. 7.1-Channel High Definition Audio

Audio

Realtek® ALC897. 7.1-Channel High Definition Audio

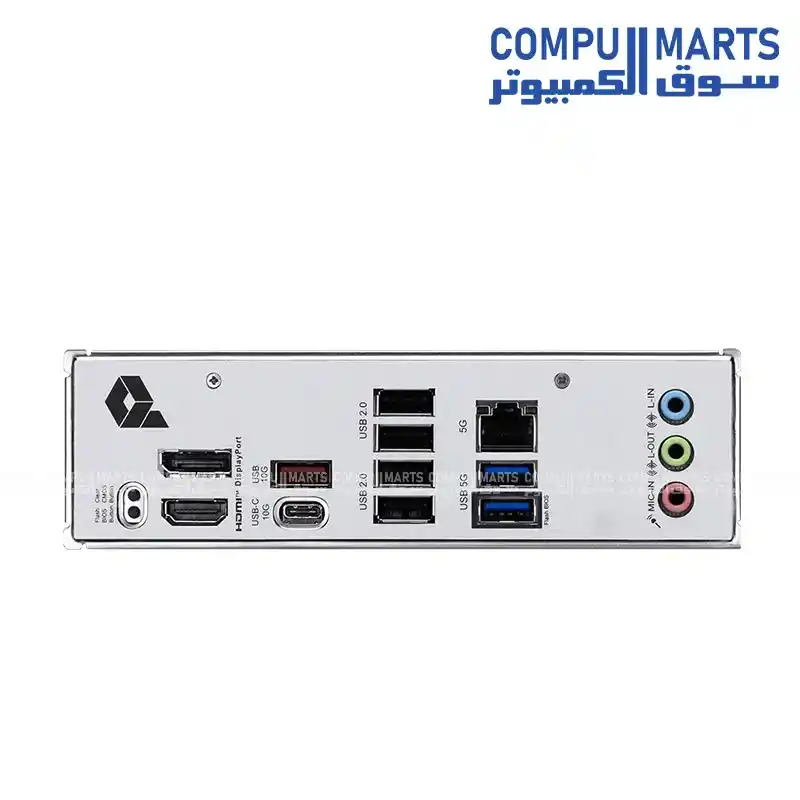

BACK PANEL PORTS

Clear CMOS Button, DisplayPort, USB 10Gbps Type-A, USB 2.0, 5G LAN, Audio connectors, Flash BIOS Button, HDMI™, USB 10Gbps Type-C, USB 5Gbps Type-A

CHIPSET

AMD B850

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5

Category

Specification Details

Chipset

AMD B850CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5

INTERNAL IO

1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports

Internal IO

1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports

LAN

Realtek® 8126VB 5G LAN

LED FEATURE

4x EZ Debug LED, 1x EZ Memory Detection LED

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s. Supports AMD POR Speed and JEDEC Speed. Supports Memory Overclocking and AMD EXPOTM. Supports Dual-Channel mode. Supports Non-ECC, Un-buffered memory. Supports CUDIMM, Clock Driver bypass mode only*. * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s. Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s. Supports AMD POR Speed and JEDEC Speed. Supports Memory Overclocking and AMD EXPOTM. Supports Dual-Channel mode. Supports Non-ECC, Un-buffered memory. Supports CUDIMM, Clock Driver bypass mode only*. * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

ONBOARD GRAPHICS

1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz*. 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*. *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Onboard Graphics

1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz*. 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*. *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices. Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices. *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

SLOT

4x PCI-E x16 slot. PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E1 slot: Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

STORAGE

3x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices. M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices. 4x SATA 6G. M2_1 slot: Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors). M2_2 slot: Supports up to PCIe 4.0 x4, Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors). *Please refer to the manual for M.2 SSD heatsink restrictions.

Slot

4x PCI-E x16 slot. PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E1 slot: Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Storage

3x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices. M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices. M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices. 4x SATA 6G. M2_1 slot: Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors). M2_2 slot: Supports up to PCIe 4.0 x4, Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors). *Please refer to the manual for M.2 SSD heatsink restrictions.

USB

4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front)
