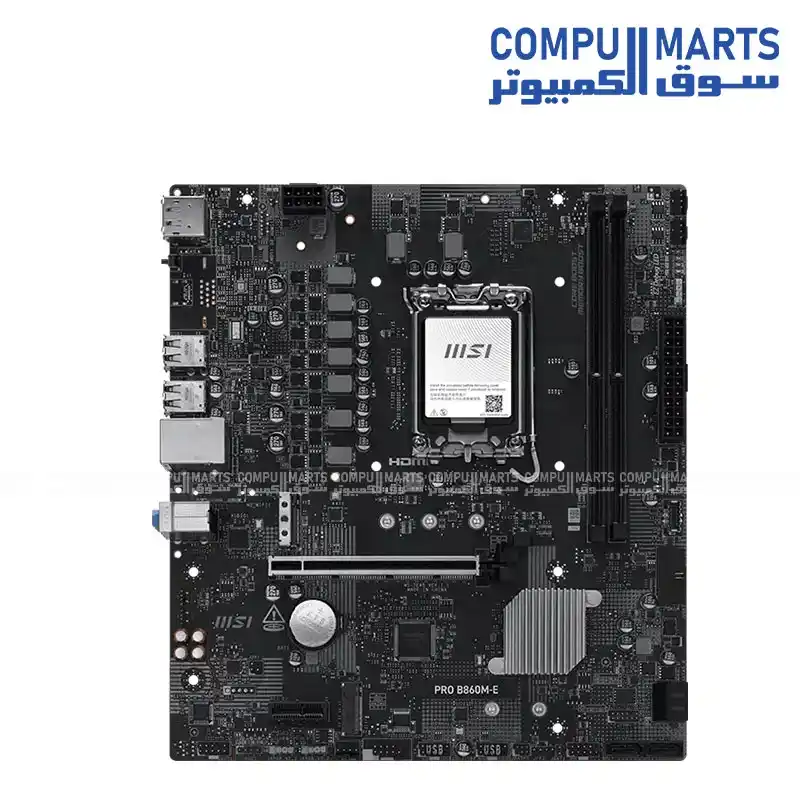

MSI PRO B860M-E LGA1851 DDR5 mATX Motherboard

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } MSI PRO B860M-E LGA1851 DDR5 mATX Motherboard is a motherboard featuring support for Intel® Core™ Ultra Processors (Series 2), 2x DDR5 UDIMM, Maximum Memory Capacity 128GB, PCIe 5.0 supports up to x16 (From CPU), 2x M.2, and Realtek® 8126 5Gbps LAN, making it a motherboard available in Egypt through Compumarts. Key specs CHIPSET INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2) MEMORY 2x DDR5 UDIMM, Maximum Memory Capacity 128GB STORAGE 2x M.2 CONNECTIVITY Realtek® 8126 5Gbps LAN MSI PRO B860M-E LGA1851 DDR5 mATX Motherboard is a motherboard featuring support for Intel® Core™ Ultra Processors (Series 2), 2x DDR5 UDIMM, Maximum Memory Capacity 128GB, PCIe 5.0 supports up to x16 (From CPU), 2x M.2, and Realtek® 8126 5Gbps LAN, making it a motherboard available in Egypt through Compumarts. Key specs CHIPSET INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2) MEMORY 2x DDR5 UDIMM, Maximum Memory Capacity 128GB STORAGE 2x M.2 CONNECTIVITY Realtek® 8126 5Gbps LAN

تفاصيل إضافية

MSI PRO B860M-E LGA1851 DDR5 mATX Motherboard is a motherboard featuring support for Intel® Core™ Ultra Processors (Series 2), 2x DDR5 UDIMM, Maximum Memory Capacity 128GB, PCIe 5.0 supports up to x16 (From CPU), 2x M.2, and Realtek® 8126 5Gbps LAN, making it a motherboard available in Egypt through Compumarts. Key specs CHIPSET INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2) MEMORY 2x DDR5 UDIMM, Maximum Memory Capacity 128GB STORAGE 2x M.2 CONNECTIVITY Realtek® 8126 5Gbps LAN

المواصفات الفنية

Audio

7.1-Channel High Definition Audio

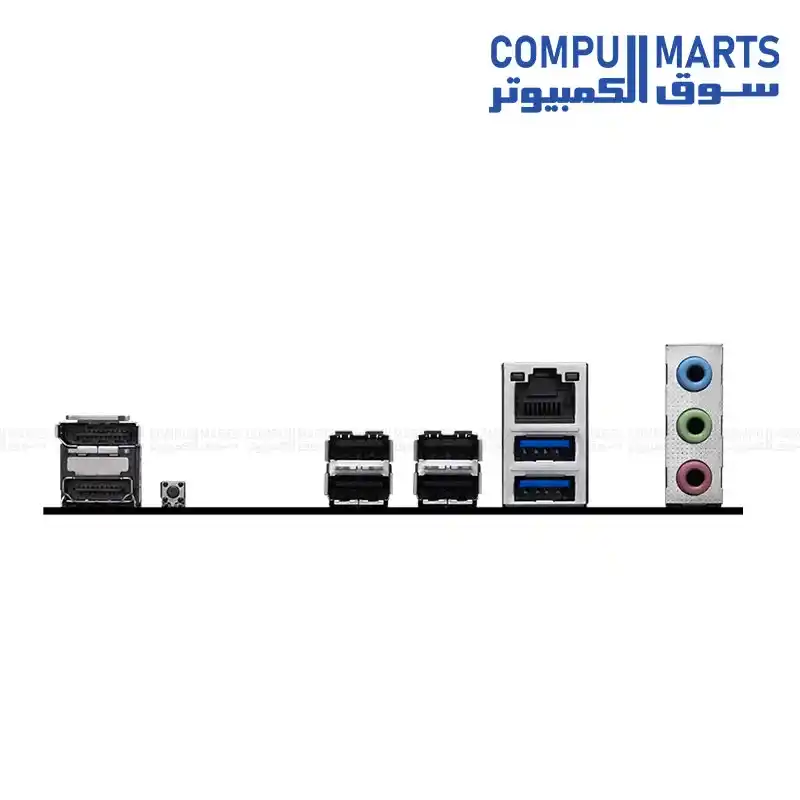

Back Panel Ports

USB 5Gbps Type-A

CHIPSET

INTEL B860

CONNECTIVITY

Realtek® 8126 5Gbps LAN

CPU

Supports Intel® Core™ Ultra Processors (Series 2)

Category

Specification Details

Chipset

INTEL B860

Dimensions

220mm x 243.84mm

DisplayPort

1x DisplayPort

DisplayPort Support

Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

Expansion Slots

1x PCI-E x1 slot

Front USB

1x USB 10Gbps Type C

HDMI

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

Internal IO

1x USB 10Gbps Type C ports

LAN

Realtek® 8126 5Gbps LAN

LED Feature

1x EZ Memory Detection LED

M.2_1

Supports up to PCIe 5.0 x4, supports 2280/2260/2242 devices

M.2_2

Supports up to PCIe 4.0 x4, supports 2280/2260 devices

MEMORY

2x DDR5 UDIMM, Maximum Memory Capacity 128GB

Memory

2x DDR5 UDIMM, Maximum Memory Capacity 128GB

Memory Features

Supports CUDIMM

Memory Overclocking

1DPC 2R Max speed up to 7200+ MT/s

Memory Support

DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Onboard Graphics

1x HDMI™

Operating System

Support for Windows® 11 64-bit

PCB Info

mATX

PCI_E1

Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2

Gen PCIe 4.0 supports up to x1 (From Chipset)

Rear USB

2x USB 5Gbps Type A

SATA

4x SATA 6G

STORAGE

2x M.2

Socket

LGA 1851

Storage

2x M.2
