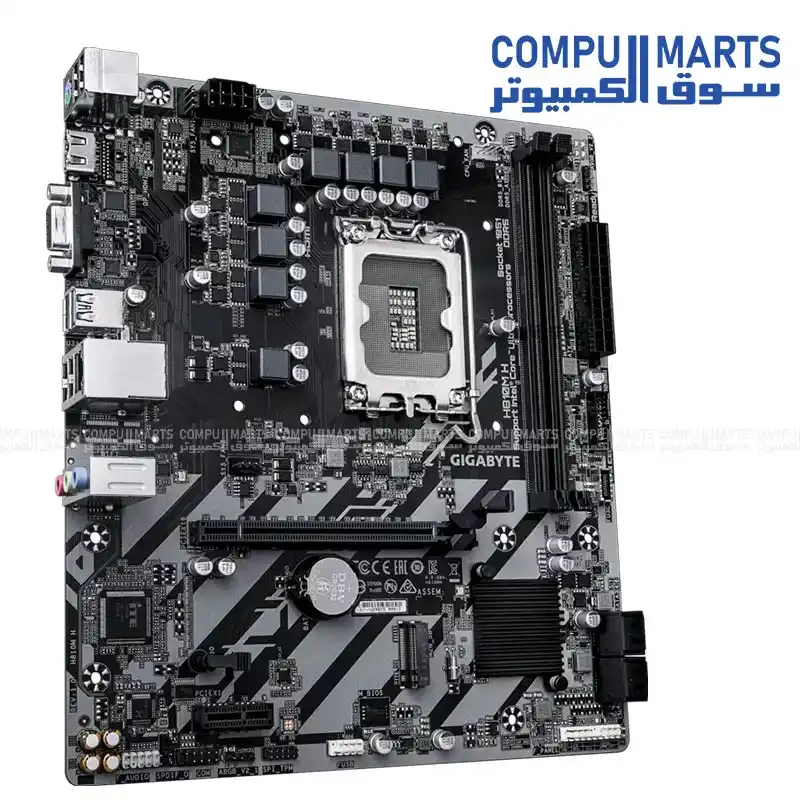

GIGABYTE H810M H Rev. 1.0 Micro ATX Motherboard LGA1851 DDR5 PCIe 4.0

عن المنتج

.pdesc-wrap{background:#1a1a1a;border:1px solid #2a2a2a;border-radius:12px;padding:24px;font-family:inherit;font-size:14px;line-height:1.75} .pdesc-intro{color:#b0b6bf;line-height:1.85;margin-bottom:20px} .pdesc-intro strong{color:#6b9fff} .pdesc-label{font-size:11px;font-weight:600;letter-spacing:.08em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse} .product-specs-table td{padding:10px 12px;border-bottom:1px solid #2a2a2a;font-size:13px} .product-specs-table td:first-child{width:38%;font-weight:600;color:#6b9fff} .product-specs-table td:last-child{color:#d1d5db} The GIGABYTE H810M H Rev. 1.0 is a reliable Micro ATX motherboard designed for the latest Intel® Core™ Ultra processors using the LGA1851 socket. Built on the Intel H810 Express Chipset, it provides solid performance for office systems, home PCs, and entry-level gaming builds while supporting modern DDR5 memory technology. With support for up to 128GB DDR5 memory, a PCIe 4.0 x16 expansion slot, M.2 PCIe 4.0 NVMe SSD, Realtek Gigabit LAN, and HDMI 2.1 connectivity, the H810M H offers excellent value for users building a modern Intel platform. GIGABYTE-exclusive features such as Q-Flash, GIGABYTE Control Center, and Smart Backup enhance usability and simplify system management. Key Features SOCKET LGA1851 for Intel® Core™ Ultra Processors CHIPSET Intel® H810 Express Chipset MEMORY Up to 128GB DDR5 Dual Channel with XMP EXPANSION PCIe 4.0 x16 + PCIe 3.0 x1 STORAGE 1× PCIe 4.0 M.2 SSD + 4× SATA 6Gb/s DISPLAY OUTPUTS HDMI 2.1 and D-Sub (VGA) NETWORK Realtek Gigabit Ethernet LIGHTING 2× Addressable RGB Gen2 Headers The GIGABYTE H810M H Rev. 1.0 is a reliable Micro ATX motherboard designed for the latest Intel® Core™ Ultra processors using the LGA1851 socket. Built on the Intel H810 Express Chipset, it provides solid performance for office systems, home PCs, and entry-level gaming builds while supporting modern DDR5 memory technology. With support for up to 128GB DDR5 memory, a PCIe 4.0 x16 expansion slot, M.2 PCIe 4.0 NVMe SSD, Realtek Gigabit LAN, and HDMI 2.1 connectivity, the H810M H offers excellent value for users building a modern Intel platform. GIGABYTE-exclusive features such as Q-Flash, GIGABYTE Control Center, and Smart Backup enhance usability and simplify system management. Key Features SOCKET LGA1851 for Intel® Core™ Ultra Processors CHIPSET Intel® H810 Express Chipset MEMORY Up to 128GB DDR5 Dual Channel with XMP EXPANSION PCIe 4.0 x16 + PCIe 3.0 x1 STORAGE 1× PCIe 4.0 M.2 SSD + 4× SATA 6Gb/s DISPLAY OUTPUTS HDMI 2.1 and D-Sub (VGA) NETWORK Realtek Gigabit Ethernet LIGHTING 2× Addressable RGB Gen2 Headers

تفاصيل إضافية

The GIGABYTE H810M H Rev. 1.0 is a reliable Micro ATX motherboard designed for the latest Intel® Core™ Ultra processors using the LGA1851 socket. Built on the Intel H810 Express Chipset, it provides solid performance for office systems, home PCs, and entry-level gaming builds while supporting modern DDR5 memory technology. With support for up to 128GB DDR5 memory, a PCIe 4.0 x16 expansion slot, M.2 PCIe 4.0 NVMe SSD, Realtek Gigabit LAN, and HDMI 2.1 connectivity, the H810M H offers excellent value for users building a modern Intel platform. GIGABYTE-exclusive features such as Q-Flash, GIGABYTE Control Center, and Smart Backup enhance usability and simplify system management. Key Features SOCKET LGA1851 for Intel® Core™ Ultra Processors CHIPSET Intel® H810 Express Chipset MEMORY Up to 128GB DDR5 Dual Channel with XMP EXPANSION PCIe 4.0 x16 + PCIe 3.0 x1 STORAGE 1× PCIe 4.0 M.2 SSD + 4× SATA 6Gb/s DISPLAY OUTPUTS HDMI 2.1 and D-Sub (VGA) NETWORK Realtek Gigabit Ethernet LIGHTING 2× Addressable RGB Gen2 Headers

المواصفات الفنية

Audio

Realtek® High Definition Audio (2/4/5.1/7.1 Channel) with S/PDIF Out

BIOS

256Mbit AMI UEFI BIOS with Q-Flash

Brand

GIGABYTE

CHIPSET

Intel® H810 Express Chipset

CPU Socket

LGA1851

Category

Specification Details

Chipset

Intel® H810 Express Chipset

Cooling Headers

1 × CPU Fan, 2 × System Fan

DISPLAY OUTPUTS

HDMI 2.1 and D-Sub (VGA)

Dimensions

24.4 × 21.5 cm

ECC Support

ECC UDIMM (Non-ECC Mode), Non-ECC UDIMM

EXPANSION

PCIe 4.0 x16 + PCIe 3.0 x1

Expansion Slots

1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1

Form Factor

Micro ATX

Graphics Outputs

1 × HDMI 2.1, 1 × D-Sub (VGA)

Internal USB

USB-C 3.2 Gen1 Header, USB 3.2 Gen1 Header, USB 2.0 Header

LAN

Realtek® Gigabit Ethernet

LIGHTING

2× Addressable RGB Gen2 Headers

M.2 Slots

1 × M.2 PCIe 4.0 x4/x2 (2280)

MEMORY

Up to 128GB DDR5 Dual Channel with XMP

Memory

2 × DDR5 DIMM, Up to 128GB, DDR5-6400/5600 MT/s

Memory Architecture

Dual Channel

Model

H810M H (Rev. 1.0)

NETWORK

Realtek Gigabit Ethernet

Operating System

Windows 11 64-bit / Windows 10 64-bit

Processor Support

Intel® Core™ Ultra Processors

RGB Headers

2 × Addressable RGB Gen2 Headers

Rear I/O

PS/2, HDMI, D-Sub, RJ-45, USB, Audio Jacks

Rear USB

1 × USB 3.2 Gen1, 5 × USB 2.0

SATA Ports

4 × SATA 6Gb/s

SOCKET

LGA1851 for Intel® Core™ Ultra Processors

STORAGE

1× PCIe 4.0 M.2 SSD + 4× SATA 6Gb/s

Software

GIGABYTE Control Center (GCC), Smart Backup

XMP Support

Yes
