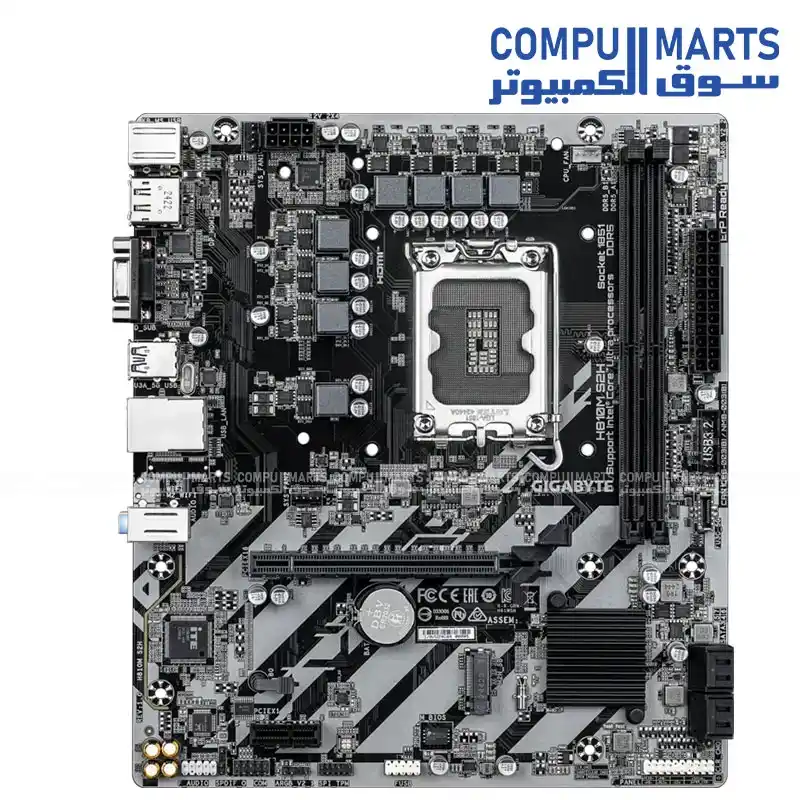

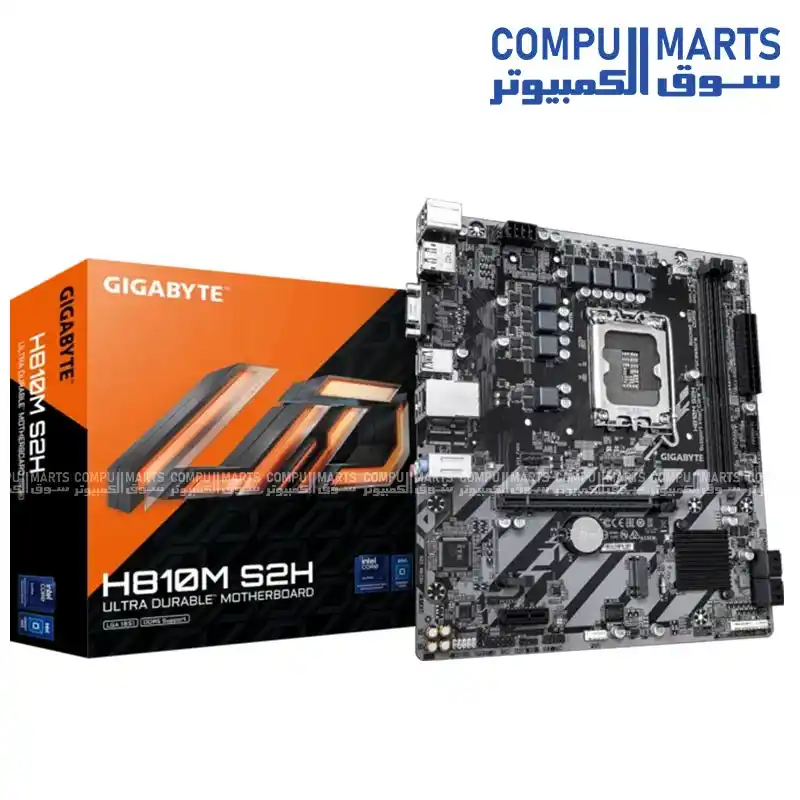

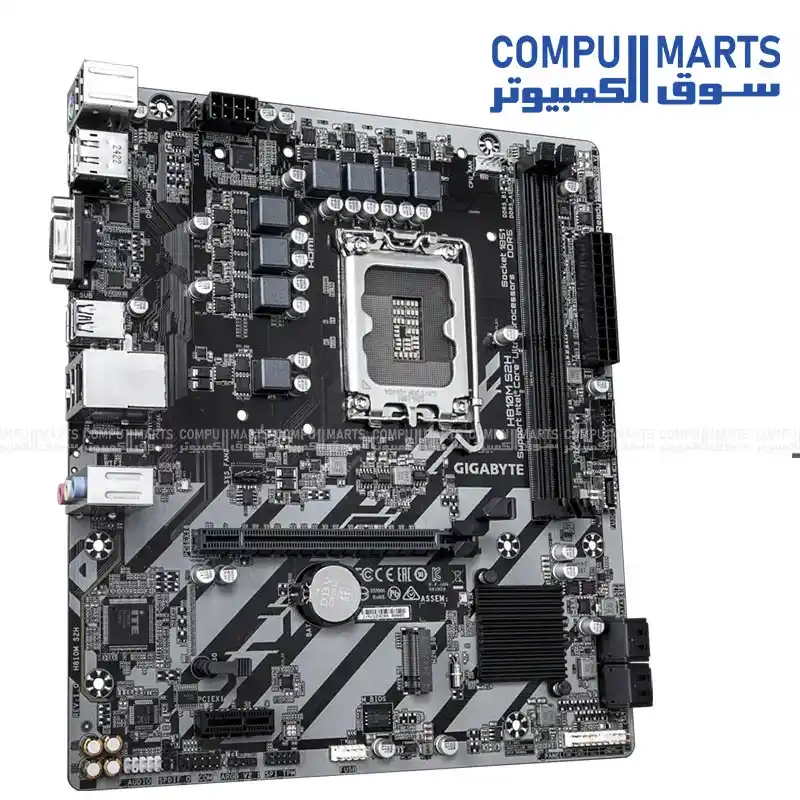

GIGABYTE H810M S2H Rev. 1.0 Micro ATX Motherboard LGA1851 DDR5 PCIe 4.0

عن المنتج

.pdesc-wrap{background:#1a1a1a;border:1px solid #2a2a2a;border-radius:12px;padding:24px;font-family:inherit;font-size:14px;line-height:1.75} .pdesc-intro{color:#b0b6bf;line-height:1.85;margin-bottom:20px} .pdesc-intro strong{color:#6b9fff} .pdesc-label{font-size:11px;font-weight:600;letter-spacing:.08em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse} .product-specs-table td{padding:10px 12px;border-bottom:1px solid #2a2a2a;font-size:13px} .product-specs-table td:first-child{width:38%;font-weight:600;color:#6b9fff} .product-specs-table td:last-child{color:#d1d5db} The GIGABYTE H810M S2H Rev. 1.0 is a feature-rich Micro ATX motherboard built for the latest Intel® Core™ Ultra processors on the LGA1851 platform. Powered by the Intel H810 Express Chipset, it delivers dependable performance for everyday computing, productivity, and mainstream gaming builds. Supporting up to 128GB of DDR5 memory, a PCIe 4.0 x16 slot, M.2 PCIe 4.0 NVMe storage, and modern display outputs including HDMI 2.1 and DisplayPort 2.1, this motherboard offers excellent connectivity and upgrade flexibility. Additional features such as GIGABYTE Control Center, Q-Flash, RGB Gen2 headers, and Realtek Gigabit LAN make it an ideal foundation for modern PC builds. Key Features SOCKET LGA1851 for Intel® Core™ Ultra Processors CHIPSET Intel® H810 Express MEMORY Up to 128GB DDR5 Dual Channel with XMP EXPANSION PCIe 4.0 x16 + PCIe 3.0 x1 STORAGE 1× PCIe 4.0 M.2 + 4× SATA 6Gb/s DISPLAY OUTPUTS HDMI 2.1, DisplayPort 2.1, D-Sub NETWORK Realtek Gigabit Ethernet LIGHTING 2× Addressable RGB Gen2 Headers The GIGABYTE H810M S2H Rev. 1.0 is a feature-rich Micro ATX motherboard built for the latest Intel® Core™ Ultra processors on the LGA1851 platform. Powered by the Intel H810 Express Chipset, it delivers dependable performance for everyday computing, productivity, and mainstream gaming builds. Supporting up to 128GB of DDR5 memory, a PCIe 4.0 x16 slot, M.2 PCIe 4.0 NVMe storage, and modern display outputs including HDMI 2.1 and DisplayPort 2.1, this motherboard offers excellent connectivity and upgrade flexibility. Additional features such as GIGABYTE Control Center, Q-Flash, RGB Gen2 headers, and Realtek Gigabit LAN make it an ideal foundation for modern PC builds. Key Features SOCKET LGA1851 for Intel® Core™ Ultra Processors CHIPSET Intel® H810 Express MEMORY Up to 128GB DDR5 Dual Channel with XMP EXPANSION PCIe 4.0 x16 + PCIe 3.0 x1 STORAGE 1× PCIe 4.0 M.2 + 4× SATA 6Gb/s DISPLAY OUTPUTS HDMI 2.1, DisplayPort 2.1, D-Sub NETWORK Realtek Gigabit Ethernet LIGHTING 2× Addressable RGB Gen2 Headers

تفاصيل إضافية

The GIGABYTE H810M S2H Rev. 1.0 is a feature-rich Micro ATX motherboard built for the latest Intel® Core™ Ultra processors on the LGA1851 platform. Powered by the Intel H810 Express Chipset, it delivers dependable performance for everyday computing, productivity, and mainstream gaming builds. Supporting up to 128GB of DDR5 memory, a PCIe 4.0 x16 slot, M.2 PCIe 4.0 NVMe storage, and modern display outputs including HDMI 2.1 and DisplayPort 2.1, this motherboard offers excellent connectivity and upgrade flexibility. Additional features such as GIGABYTE Control Center, Q-Flash, RGB Gen2 headers, and Realtek Gigabit LAN make it an ideal foundation for modern PC builds. Key Features SOCKET LGA1851 for Intel® Core™ Ultra Processors CHIPSET Intel® H810 Express MEMORY Up to 128GB DDR5 Dual Channel with XMP EXPANSION PCIe 4.0 x16 + PCIe 3.0 x1 STORAGE 1× PCIe 4.0 M.2 + 4× SATA 6Gb/s DISPLAY OUTPUTS HDMI 2.1, DisplayPort 2.1, D-Sub NETWORK Realtek Gigabit Ethernet LIGHTING 2× Addressable RGB Gen2 Headers

المواصفات الفنية

Audio

Realtek® HD Audio (2/4/5.1/7.1 Channel) with S/PDIF Out

BIOS

256Mbit AMI UEFI BIOS with Q-Flash

Brand

GIGABYTE

CHIPSET

Intel® H810 Express

Category

Specification Details

Chipset

Intel® H810 Express

Cooling Headers

1 × CPU Fan, 2 × System Fan

DISPLAY OUTPUTS

HDMI 2.1, DisplayPort 2.1, D-Sub

Dimensions

24.4 × 21.5 cm

ECC Support

ECC UDIMM (Non-ECC Mode), Non-ECC UDIMM

EXPANSION

PCIe 4.0 x16 + PCIe 3.0 x1

Form Factor

Micro ATX

Graphics Outputs

1 × HDMI 2.1, 1 × DisplayPort 2.1, 1 × D-Sub

LAN

Realtek® Gigabit Ethernet

LIGHTING

2× Addressable RGB Gen2 Headers

M.2 Slots

1 × M.2 PCIe 4.0 x4/x2 (2280)

MEMORY

Up to 128GB DDR5 Dual Channel with XMP

Maximum Displays

Triple Display

Memory Architecture

Dual Channel

Memory Support

2 × DDR5 DIMM, Up to 128GB, DDR5-6400/5600 MT/s

Model

H810M S2H (Rev. 1.0)

NETWORK

Realtek Gigabit Ethernet

Operating System

Windows 11 64-bit / Windows 10 64-bit

PCIe Slots

1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1

Processor Support

Intel® Core™ Ultra Processors

RGB Headers

2 × Addressable RGB Gen2 Headers

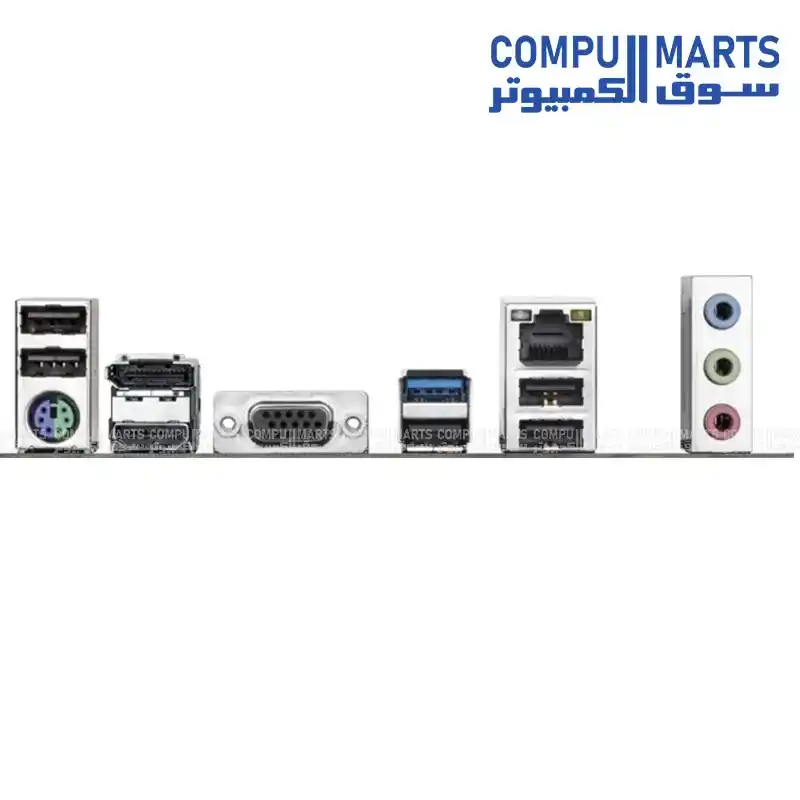

Rear I/O

PS/2, HDMI, DisplayPort, D-Sub, RJ-45, Audio Jacks, USB Ports

SATA Ports

4 × SATA 6Gb/s

SOCKET

LGA1851 for Intel® Core™ Ultra Processors

STORAGE

1× PCIe 4.0 M.2 + 4× SATA 6Gb/s

Socket

LGA1851

Software

GIGABYTE Control Center (GCC), Smart Backup

USB Internal

USB-C 3.2 Gen1 Header, USB 3.2 Gen1 Header, USB 2.0 Header

USB Rear

1 × USB 3.2 Gen1, 5 × USB 2.0

XMP Support

Yes
