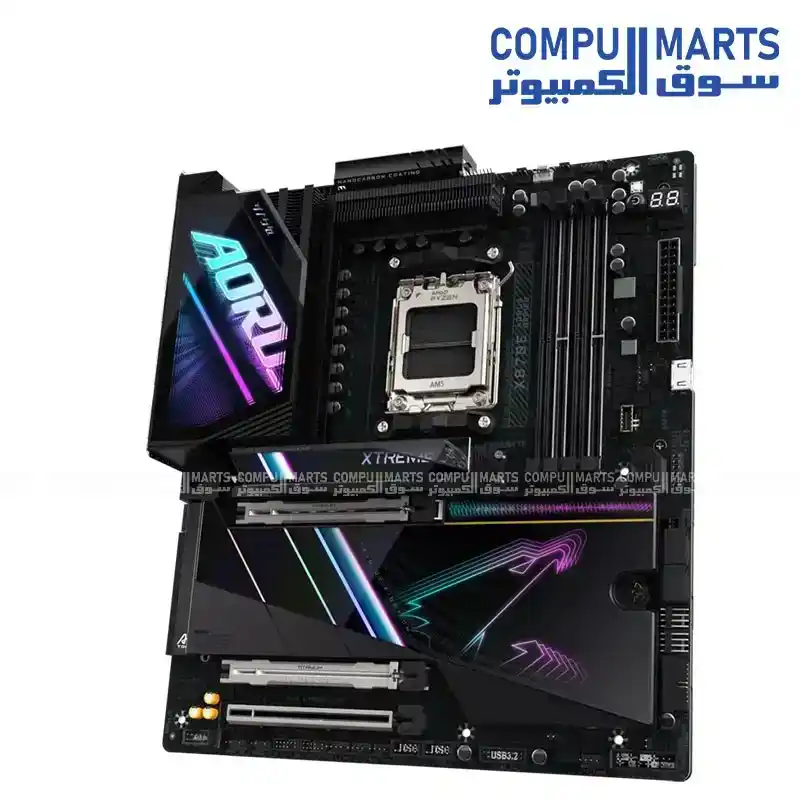

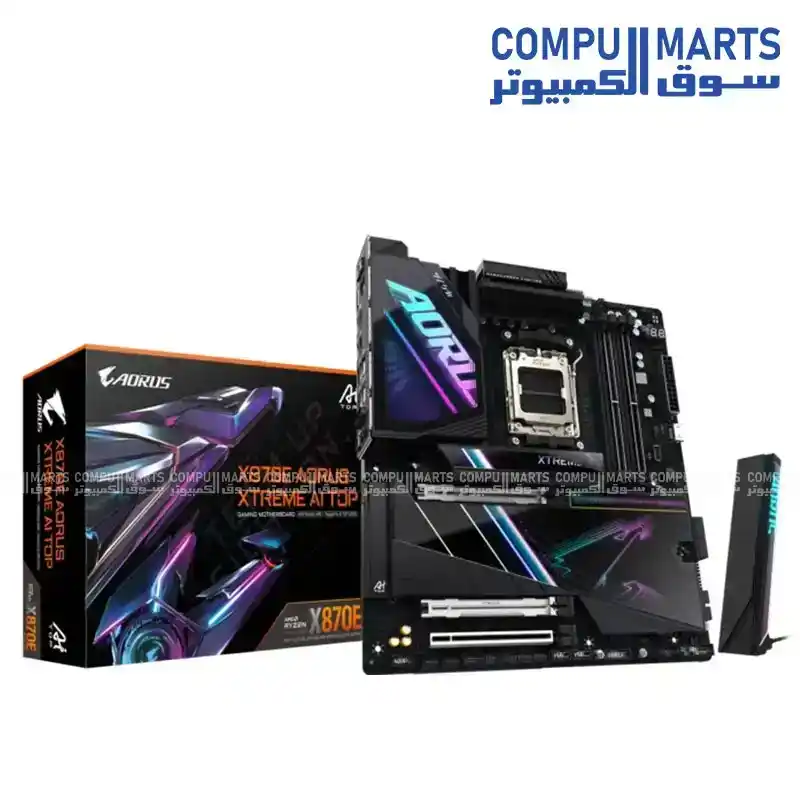

GIGABYTE X870E AORUS XTREME AI TOP E-ATX AM5 Motherboard with AMD X870E, DDR5, PCIe 5.0, USB4, Wi-Fi 7, Dual 10GbE LAN

عن المنتج

.pdesc-wrap{background:#1a1a1a;border-radius:12px;border:1px solid #2a2a2a;padding:24px;font-family:inherit;font-size:14px;line-height:1.75;box-sizing:border-box;width:100%;max-width:100%} .pdesc-intro{font-size:14px;color:#b0b6bf;line-height:1.85;margin:0 0 20px;word-break:break-word} .pdesc-intro strong{color:#6b9fff;font-weight:500} .pdesc-label{font-size:11px;font-weight:500;letter-spacing:0.09em;text-transform:uppercase;color:#4a5568;margin-bottom:10px} .product-specs-table{width:100%;border-collapse:collapse;margin-top:8px;table-layout:fixed} .product-specs-table tr{border-bottom:1px solid #2a2a2a} .product-specs-table td{padding:10px 12px;font-size:13px;line-height:1.6;vertical-align:top;border:none;word-break:break-word} .product-specs-table td:first-child{color:#6b9fff;font-weight:500;width:38%;letter-spacing:0.02em} .product-specs-table td:last-child{color:#d1d5db;font-weight:400} @media(max-width:480px){ .pdesc-wrap{padding:16px;border-radius:8px} .pdesc-intro{font-size:13px} .product-specs-table td{display:block;width:100%;padding:6px 8px} .product-specs-table tr{display:block;padding:8px 0;border-bottom:1px solid #2a2a2a} .product-specs-table td:first-child{width:100%;padding-bottom:2px;font-size:11px;letter-spacing:0.06em} .product-specs-table td:last-child{padding-top:0;font-size:13px} } GIGABYTE X870E AORUS XTREME AI TOP (Rev. 1.x) is a motherboard featuring an AMD X870E chipset, support for AMD Socket AM5, AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors, DDR5 8800(O.C.) / 8600(O.C.) / 8400(O.C.) / 8266(O.C.) / 8200(O.C.) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5200 / 4800 MT/s memory support, PCIe 5.0 expansion, and Wi-Fi 7 connectivity, making it an AM5 motherboard available in Egypt through Compumarts. Key specs SOCKET AMD Socket AM5 CHIPSET AMD X870E MEMORY 4 x DDR5 DIMM WIRELESS Wi-Fi 7 (Qualcomm® QCNCM865 PCB rev.1.0 / MediaTek MT7927 PCB rev.1.1), Bluetooth 5.4 PORTS 2 x USB4® USB Type-C® ports on the back panel FORM FACTOR E-ATX GIGABYTE X870E AORUS XTREME AI TOP (Rev. 1.x) is a motherboard featuring an AMD X870E chipset, support for AMD Socket AM5, AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors, DDR5 8800(O.C.) / 8600(O.C.) / 8400(O.C.) / 8266(O.C.) / 8200(O.C.) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5200 / 4800 MT/s memory support, PCIe 5.0 expansion, and Wi-Fi 7 connectivity, making it an AM5 motherboard available in Egypt through Compumarts. Key specs SOCKET AMD Socket AM5 CHIPSET AMD X870E MEMORY 4 x DDR5 DIMM WIRELESS Wi-Fi 7 (Qualcomm® QCNCM865 PCB rev.1.0 / MediaTek MT7927 PCB rev.1.1), Bluetooth 5.4 PORTS 2 x USB4® USB Type-C® ports on the back panel FORM FACTOR E-ATX

تفاصيل إضافية

GIGABYTE X870E AORUS XTREME AI TOP (Rev. 1.x) is a motherboard featuring an AMD X870E chipset, support for AMD Socket AM5, AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors, DDR5 8800(O.C.) / 8600(O.C.) / 8400(O.C.) / 8266(O.C.) / 8200(O.C.) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5200 / 4800 MT/s memory support, PCIe 5.0 expansion, and Wi-Fi 7 connectivity, making it an AM5 motherboard available in Egypt through Compumarts. Key specs SOCKET AMD Socket AM5 CHIPSET AMD X870E MEMORY 4 x DDR5 DIMM WIRELESS Wi-Fi 7 (Qualcomm® QCNCM865 PCB rev.1.0 / MediaTek MT7927 PCB rev.1.1), Bluetooth 5.4 PORTS 2 x USB4® USB Type-C® ports on the back panel FORM FACTOR E-ATX

المواصفات الفنية

Audio

Realtek® ALC1220 CODEC

Audio Features

DTS:X® Ultra, High Definition Audio, 2/4/5.1-channel, S/PDIF Out

BIOS

256 Mbit AMI UEFI BIOS

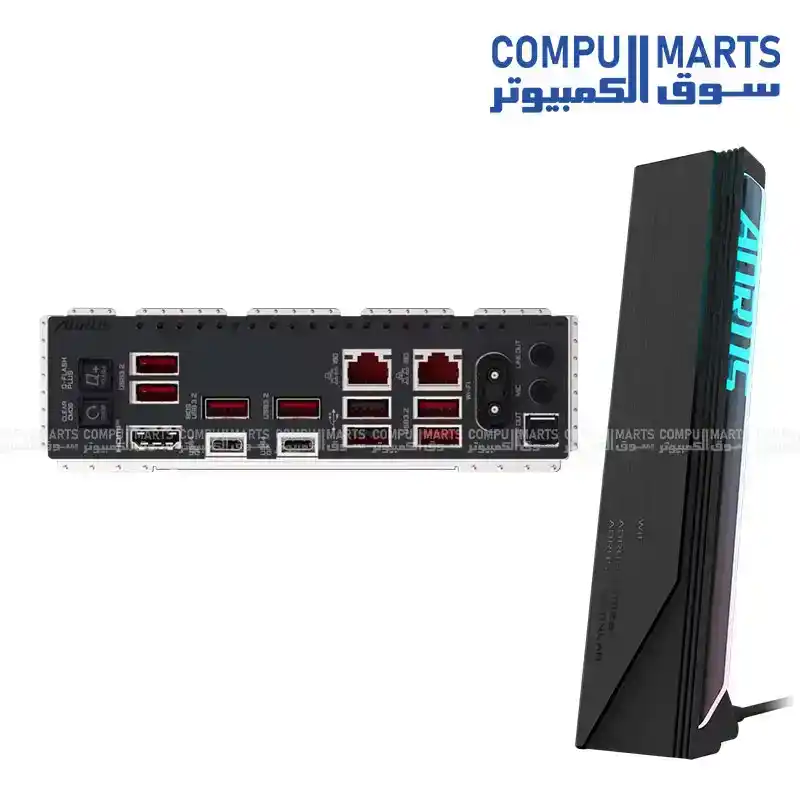

Back Panel

Q-Flash Plus Button, Clear CMOS Button, HDMI, 2 x USB4 Type-C, 6 x USB 3.2 Gen2 Type-A, 2 x USB 2.0, 2 x RJ-45, Optical S/PDIF, 2 Audio Jacks

Brand

GIGABYTE

CHIPSET

AMD X870E

CPU Support

AMD Socket AM5, AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors

Category

Specification Details

Chipset

AMD X870E

DAC

ESS ES9118 DAC chip

Dimensions

30.5 cm x 26.9 cm

Expansion Slots

1 x PCIe 5.0 x16, 1 x PCIe 5.0 x8, 1 x PCIe 4.0 x2

FORM FACTOR

E-ATX

Form Factor

E-ATX

Graphics Outputs

2 x USB4® USB Type-C® with DisplayPort, 1 x HDMI 2.1, 1 x Front HDMI 1.4

Internal Connectors

24-pin ATX, 2 x 8-pin ATX 12V, CPU Fan, Pump, 8 System/Pump Fan Headers, RGB Headers, TPM Header, Front Audio

Internal USB

1 x USB 3.2 Gen2x2 Type-C Header, 2 x USB 3.2 Gen1 Headers, 2 x USB 2.0 Headers

LAN

2 x Marvell® AQtion AQC113C 10GbE LAN

M.2 Slots

4 x M.2 Socket 3

MEMORY

4 x DDR5 DIMM

Maximum Memory

256 GB

Memory Architecture

Dual Channel

Memory Profiles

AMD EXPO™ and XMP

Memory Slots

4 x DDR5 DIMM

Memory Support

ECC and non-ECC Un-buffered DIMM

Model

X870E AORUS XTREME AI TOP (Rev. 1.x)

Operating System

Windows 11 64-bit

PORTS

2 x USB4® USB Type-C® ports on the back panel

RAID

NVMe RAID 0/1/5/10, SATA RAID 0/1/10

Rear USB

2 x USB4 Type-C, 6 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0

SATA

4 x SATA 6Gb/s

SOCKET

AMD Socket AM5

WIRELESS

Wi-Fi 7 (Qualcomm® QCNCM865 PCB rev.1.0 / MediaTek MT7927 PCB rev.1.1), Bluetooth 5.4

Wireless

Wi-Fi 7 (Qualcomm® QCNCM865 PCB rev.1.0 / MediaTek MT7927 PCB rev.1.1), Bluetooth 5.4
